GX-8 Standard

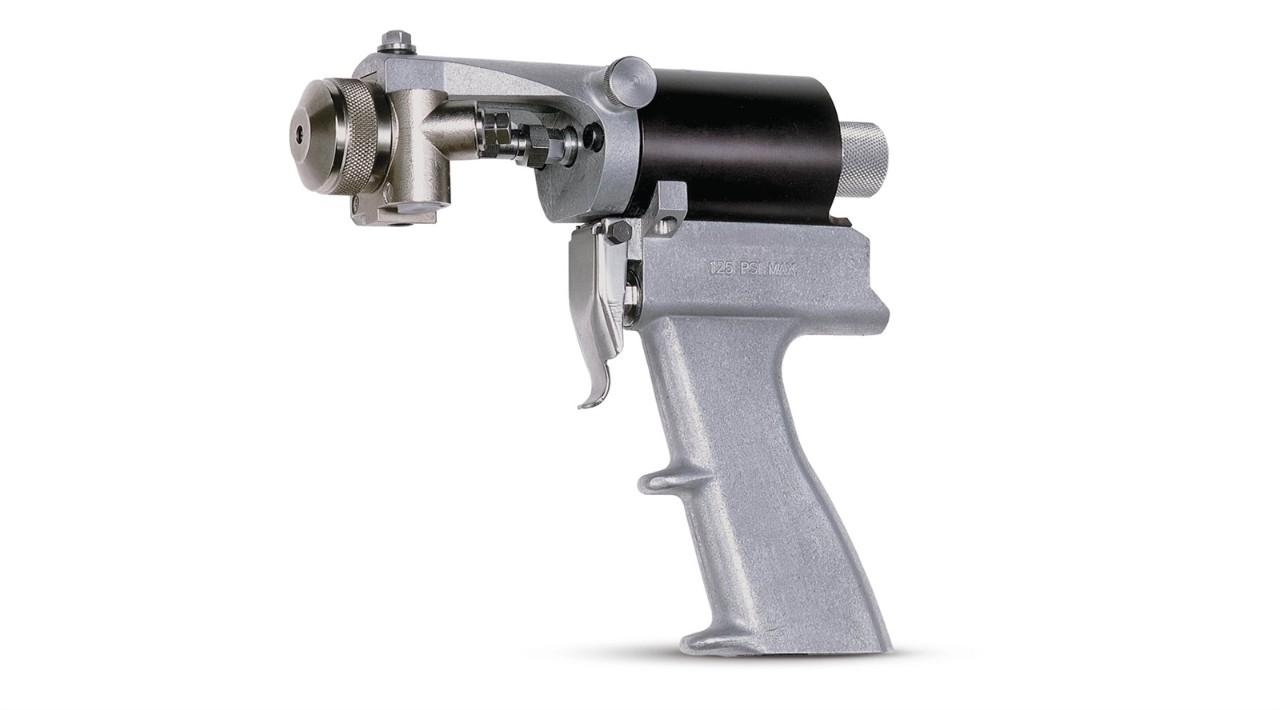

GX-8 Spray Gun
Part Number: 297898
GX-8 Standard
GX-8 Spray Gun
Part Number: 297898
The GX-8 Gun is designed for very low output, fast-set polyurea, polyurethane and hybrid coatings. It is designed to save on material consumption by significantly reducing overspray associated with low-output spraying.
Features
Product Brochure
The GX-8 Gun is designed for very low output, fast-set polyurea, polyurethane and hybrid coatings. It is designed to save on material consumption by significantly reducing overspray associated with low-output spraying.
For very low-output fast-set polyurea, polyurethane and hybrid coatings.
- Solvent-free, mechanically self-cleaning
- Direct impingement mixing assures high yield per unit of material and superior surface finish
- More air volume to air cap helps keep the gun's tip cleaner longer
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Type | NPT |
| Compatible Material | Plural Component Protective Coating, Polyurea, Elastomeric Coating, Polyurethane Coating |
| Component A Inlet Size (in) | 1/2-20 |
| Component A Inlet Thread Type | UNF |
| Component B Inlet Size (in) | 9/16 |
| Component B Inlet Thread Type | UNF |
| Gun Activation | Manual |
| Gun Model | GX-8 |
| Gun Type | Mechanical-Purge |
| Gun Weight (lb) | 3.5 |
| Gun Weight (oz) | 56 |
| Includes | Mix Module, Tip |
| Maximum Air Inlet Pressure (MPa) | 0.86 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Air Pressure (MPa) | 0.86 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Flow Rate (lb/min) | 1.5 |
| Maximum Fluid Pressure (MPa) | 24.1 |
| Maximum Fluid Pressure (psi) | 3500 |
| Maximum Fluid Working Pressure (MPa) | 24 |
| Maximum Fluid Working Pressure (psi) | 3500 |
| Minimum Air Inlet Pressure (MPa) | 0.69 |
| Minimum Air Inlet Pressure (psi) | 100 |
| Minimum Flow Rate (lb/min) | 1 |
| Model | GX-8 |
| Overall Height (in) | 7.5 |
| Overall Length (in) | 7 |
| Overall Width (in) | 2.5 |
| Pattern Size (in) | 6 in @ 18-24 in from target |
| Pressure Type | High Pressure |
| Purge Method | Mechanical |
| Series | Standard |
| Spray Gun Mix Type | Impingement |
| Spray Pattern | Fan |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, Carbon Steel, HDPE, Acetal |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| Compatible Material | Plural Component Protective Coating, Polyurea, Elastomeric Coating, Polyurethane Coating |
| Component A Inlet Size (cm) | 1.27 |
| Component A Inlet Size (in) | 1/2-20 |
| Component A Inlet Size (mm) | 12.7 |
| Component A Inlet Thread Type | UNF |
| Component B Inlet Size (cm) | 1.42875 |
| Component B Inlet Size (in) | 9/16 |
| Component B Inlet Size (mm) | 14.2875 |
| Component B Inlet Thread Type | UNF |
| Gun Activation | Manual |
| Gun Model | GX-8 |
| Gun Type | Mechanical-Purge |
| Gun Weight (g) | 1588 |
| Gun Weight (kg) | 1.59 |
| Gun Weight (oz) | 56 |
| Includes | Mix Module, Tip |
| Maximum Air Inlet Pressure (MPa) | 0.86 |
| Maximum Air Inlet Pressure (bar) | 8.6 |
| Maximum Air Inlet Pressure (kPa) | 860 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Air Pressure (MPa) | 0.86 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Flow Rate (kg/min) | 0.7 |
| Maximum Fluid Pressure (MPa) | 24.1 |
| Maximum Fluid Pressure (bar) | 241 |
| Maximum Fluid Pressure (kPa) | 24100 |
| Maximum Fluid Pressure (psi) | 3500 |
| Maximum Fluid Working Pressure (MPa) | 24 |
| Maximum Fluid Working Pressure (bar) | 240 |
| Maximum Fluid Working Pressure (psi) | 3500 |
| Minimum Air Inlet Pressure (MPa) | 0.69 |
| Minimum Air Inlet Pressure (bar) | 6.9 |
| Minimum Air Inlet Pressure (kPa) | 690 |
| Minimum Air Inlet Pressure (psi) | 100 |
| Minimum Flow Rate (kg/min) | 0.45 |
| Model | GX-8 |
| Overall Height (cm) | 19 |
| Overall Height (mm) | 190 |
| Overall Length (cm) | 17.8 |
| Overall Length (mm) | 178 |
| Overall Width (cm) | 6.25 |
| Overall Width (mm) | 62.5 |
| Pattern Size (mm) | 152.4 |
| Pressure Type | High Pressure |
| Purge Method | Mechanical |
| Series | Standard |
| Spray Gun Mix Type | Impingement |
| Spray Pattern | Fan |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, Carbon Steel, HDPE, Acetal |
