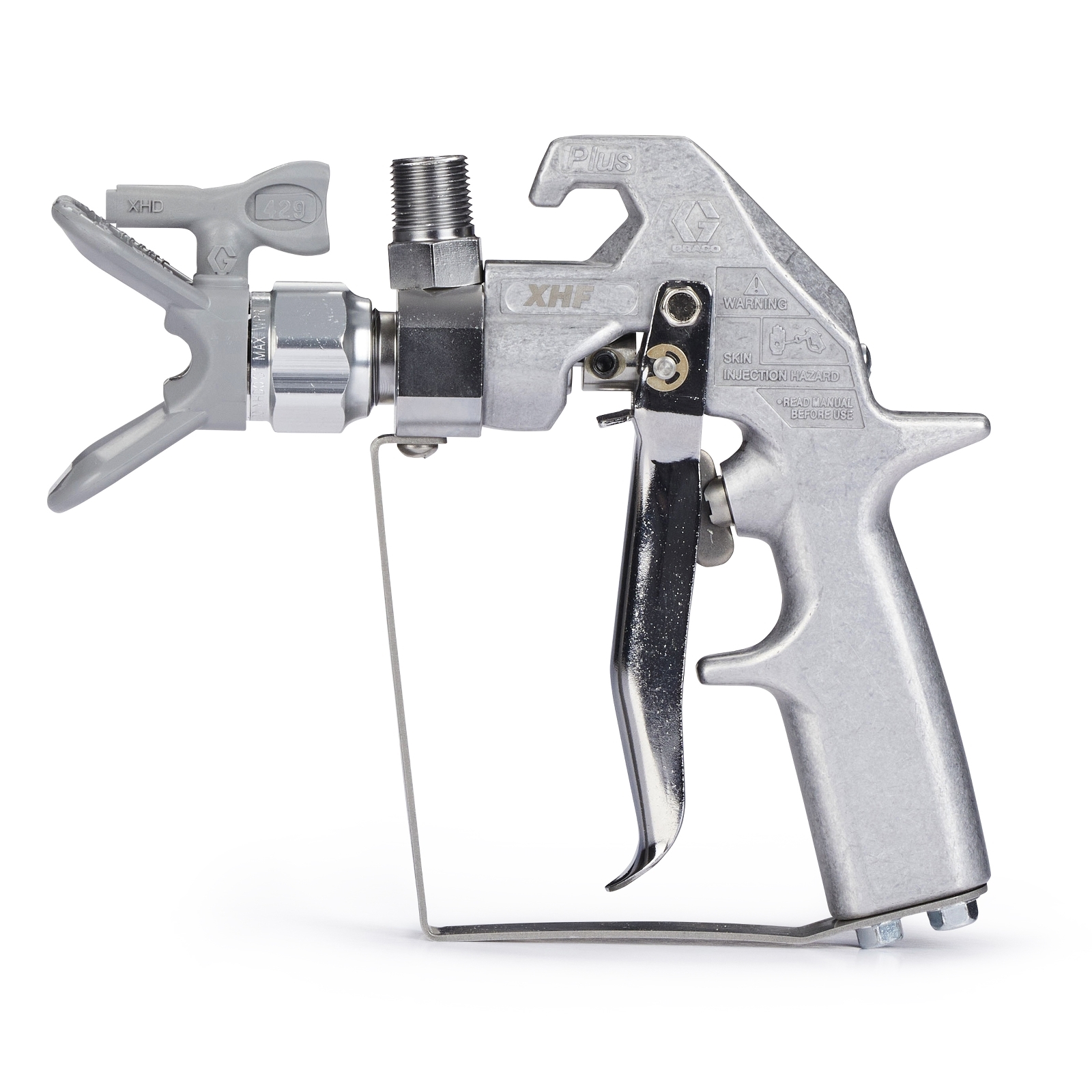

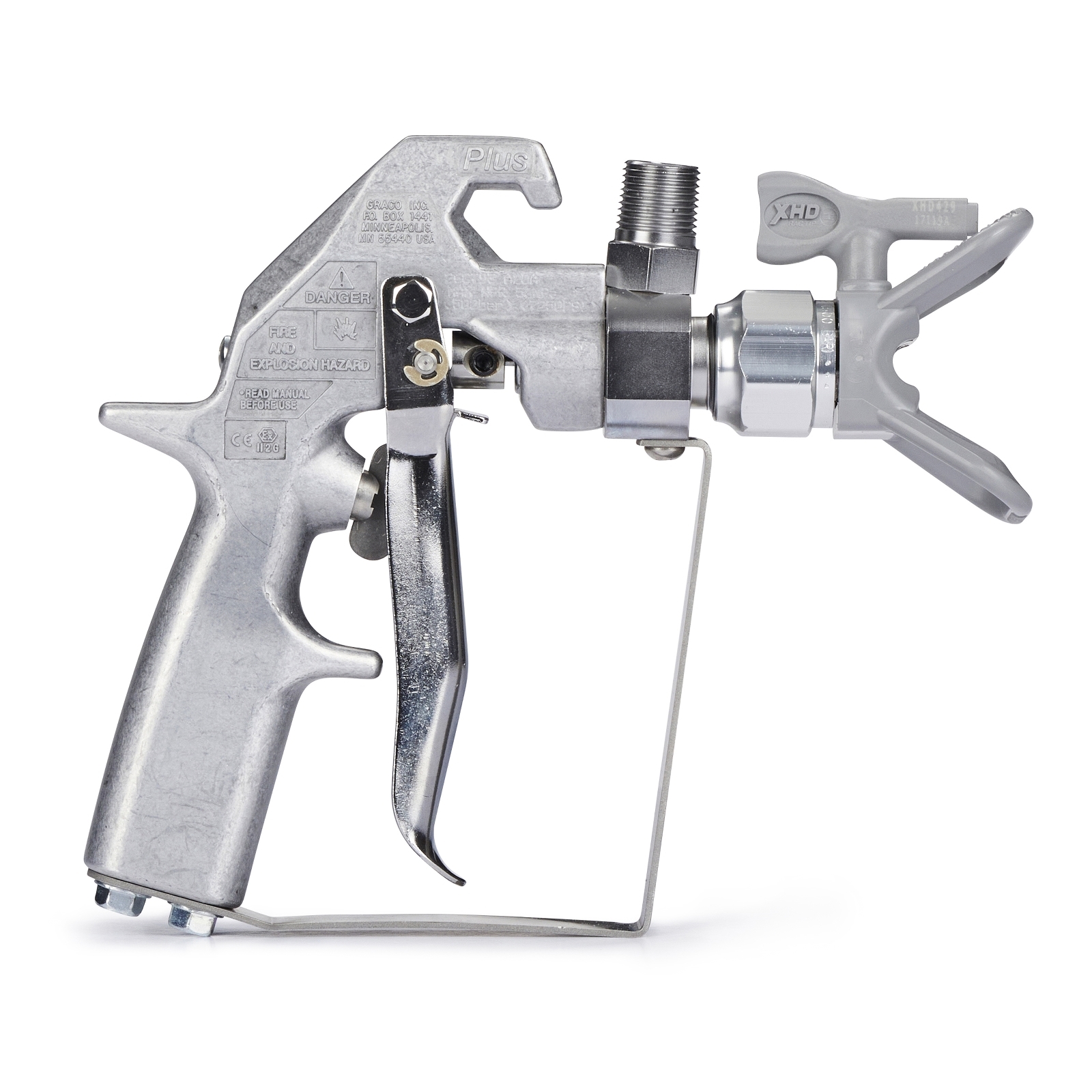

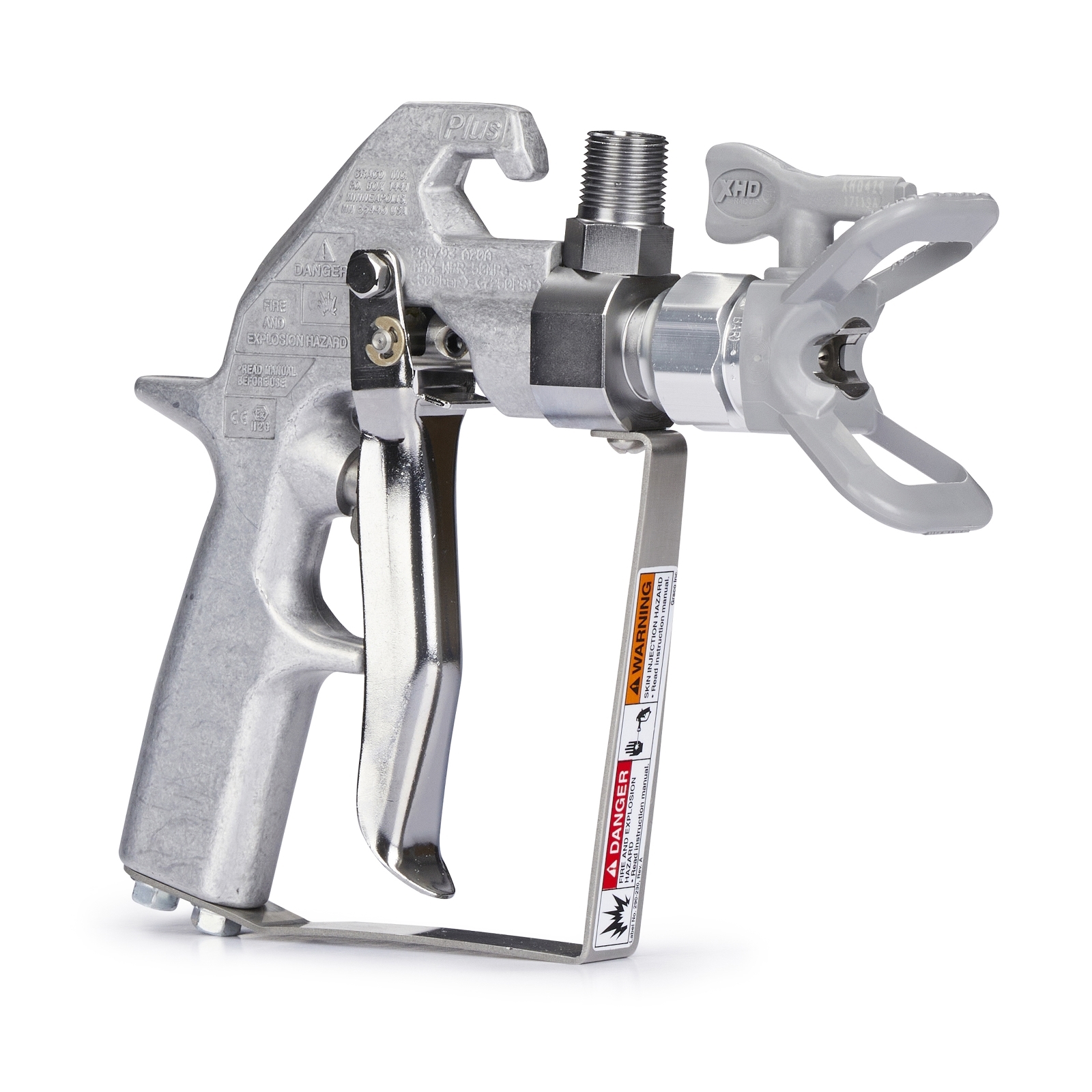

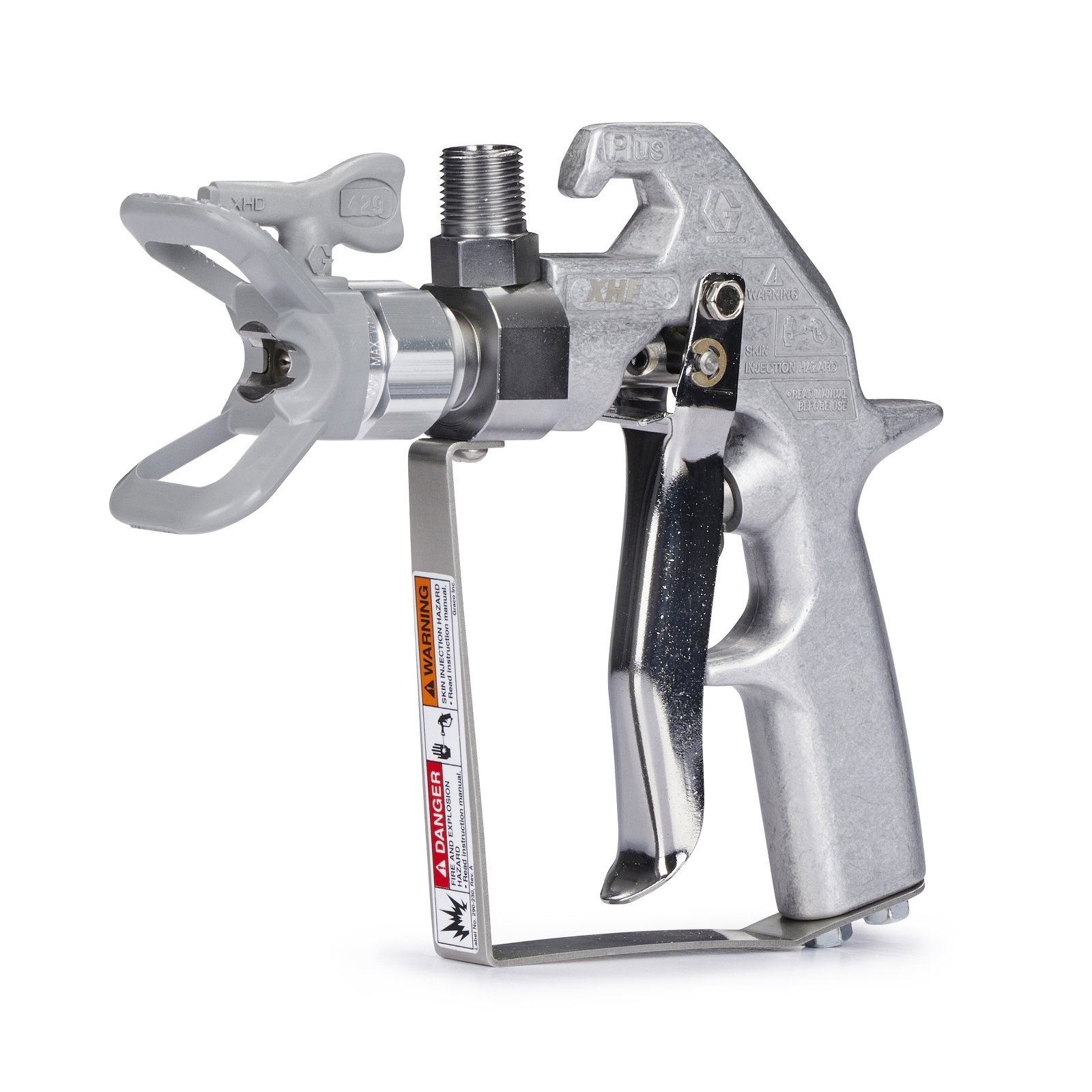

XHF Top Feed Airless Spray Gun, XHD RAC Tip
Part Number: 26C793
XHF Top Feed Airless Spray Gun, XHD RAC Tip
Part Number: 26C793
Designed to spray high viscosity materials, the XHF Top Feed Gun is rugged, reliable and easy to maintain.
Related Videos
Features
Product Brochure
Designed to spray high viscosity materials, the XHF Top Feed Gun is rugged, reliable and easy to maintain.
For epoxy intumescent fireproofing coatings
- High-flow, high pressure gun
- Handles epoxy intumescent materials, high-viscosity coatings, fiber filled materials
- Top fed fluid inlet allows sub grade work to be done with ease.
Specifications & Documents
Technical Specifications
Convert to Metric| Applicator Type | Manual |
|---|---|
| Compatible Material | Epoxy Intumescent Fireproofing |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Orifice Size (in) | 0.125 |
| For Use With | Protective Coating High-Pressure Equipment |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Airless Gun |
| Gun Weight (lb) | 1.6 |
| Gun Weight (oz) | 26 |
| Includes | XHD RAC Guard, XHD429 SwitchTip |
| Maximum Fluid Pressure (MPa) | 50 |
| Maximum Fluid Pressure (psi) | 7250 |
| Maximum Fluid Working Pressure (MPa) | 50 |
| Maximum Fluid Working Pressure (psi) | 7250 |
| Overall Height (in) | 7.0 |
| Overall Length (in) | 8.25 |
| Product Type | Spray Gun |
| Purge Method | Liquid |
| Sound Power Level (dB(A)) | 93 |
| Sound Pressure Level (dB(A)) | 84 |
| Spray Pattern | Flat |
| Trigger Lock | Locking |
| Trigger Type | Full-Hand |
| Type | Spray Gun |
| Wetted Parts | Tungsten Carbide, 17-4PH Passivated Stainless Steel, Polypropylene, Polyethylene |
| Applicator Type | Manual |
| Compatible Material | Epoxy Intumescent Fireproofing |
| Fluid Inlet Size (cm) | 0.9525 |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Size (mm) | 9.525 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Orifice Size (cm) | 0.32 |
| Fluid Orifice Size (in) | 0.125 |
| Fluid Orifice Size (mm) | 3.2 |
| For Use With | Protective Coating High-Pressure Equipment |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Airless Gun |
| Gun Weight (g) | 725 |
| Gun Weight (kg) | 0.725 |
| Gun Weight (oz) | 26 |
| Includes | XHD RAC Guard, XHD429 SwitchTip |
| Maximum Fluid Pressure (MPa) | 50 |
| Maximum Fluid Pressure (bar) | 500 |
| Maximum Fluid Pressure (kPa) | 50000 |
| Maximum Fluid Pressure (psi) | 7250 |
| Maximum Fluid Working Pressure (MPa) | 50 |
| Maximum Fluid Working Pressure (bar) | 500 |
| Maximum Fluid Working Pressure (psi) | 7250 |
| Overall Height (cm) | 17.8 |
| Overall Height (mm) | 178 |
| Overall Length (cm) | 21 |
| Overall Length (mm) | 210 |
| Product Type | Spray Gun |
| Purge Method | Liquid |
| Sound Power Level (dB(A)) | 93 |
| Sound Pressure Level (dB(A)) | 84 |
| Spray Pattern | Flat |
| Trigger Lock | Locking |
| Trigger Type | Full-Hand |
| Type | Spray Gun |
| Wetted Parts | Tungsten Carbide, 17-4PH Passivated Stainless Steel, Polypropylene, Polyethylene |
