G40

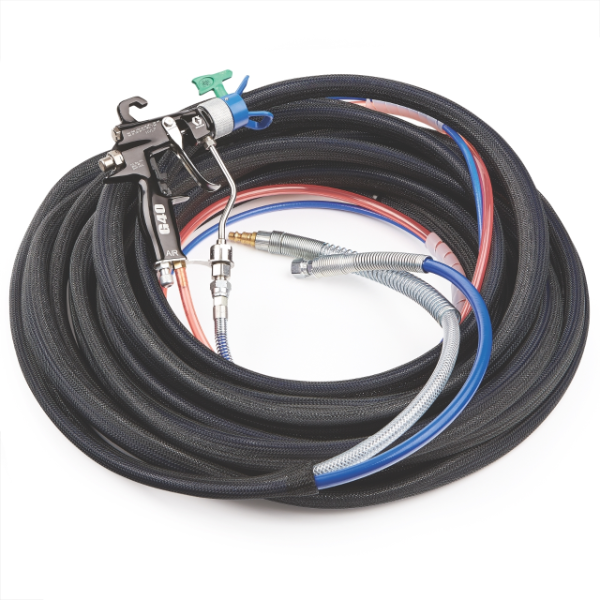

G40 Air-Assisted Airless Gun
Part Number: 262929
Image is for illustrative purposes only.
G40
G40 Air-Assisted Airless Gun
Part Number: 262929
Designed to maximize efficiency and quality, G40 air-assist spray guns use the highest quality components for long lasting reliable performance. The AAF tip line is designed for soft spray and improved transfer efficiency.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Designed to maximize efficiency and quality, G40 air-assist spray guns use the highest quality components for long lasting reliable performance. The AAF tip line is designed for soft spray and improved transfer efficiency.
- High quality air-assisted spraying in a variety of applications
- All tips have a ring to retain the tip in the aircap
- Designed to minimize wear of replacement parts
- Improving transfer efficiency and material usage
- Trigger pull force is ultra-light, reducing operator fatigue and muscle stress
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish, Waterborne |
| Feed Type | Pressure Feed |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Air-Assisted Gun |
| Gun Weight (oz) | 16 |
| Includes | RAC X FF LP Spray Tip |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 28.0 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Fluid Temperature (°F) | 110 |
| Minimum Flow Rate @ PSI (oz/min) | 5 |
| Model | G40 |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air-Assisted |
| Technology Type | N/A |
| Trigger Lock | Locking |
| Type | Spray Gun |
| Air Inlet Size (cm) | 0.635 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Compatible Material | Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish, Waterborne |
| Feed Type | Pressure Feed |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Air-Assisted Gun |
| Gun Weight (g) | 16 |
| Gun Weight (oz) | 16 |
| Includes | RAC X FF LP Spray Tip |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 28.0 |
| Maximum Fluid Pressure (bar) | 280 |
| Maximum Fluid Pressure (kPa) | 28000 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Fluid Temperature (°C) | 43 |
| Minimum Flow Rate @ PSI (oz/min) | 5 |
| Model | G40 |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air-Assisted |
| Technology Type | N/A |
| Trigger Lock | Locking |
| Type | Spray Gun |
