Reactor 3 Xtreme Wrap

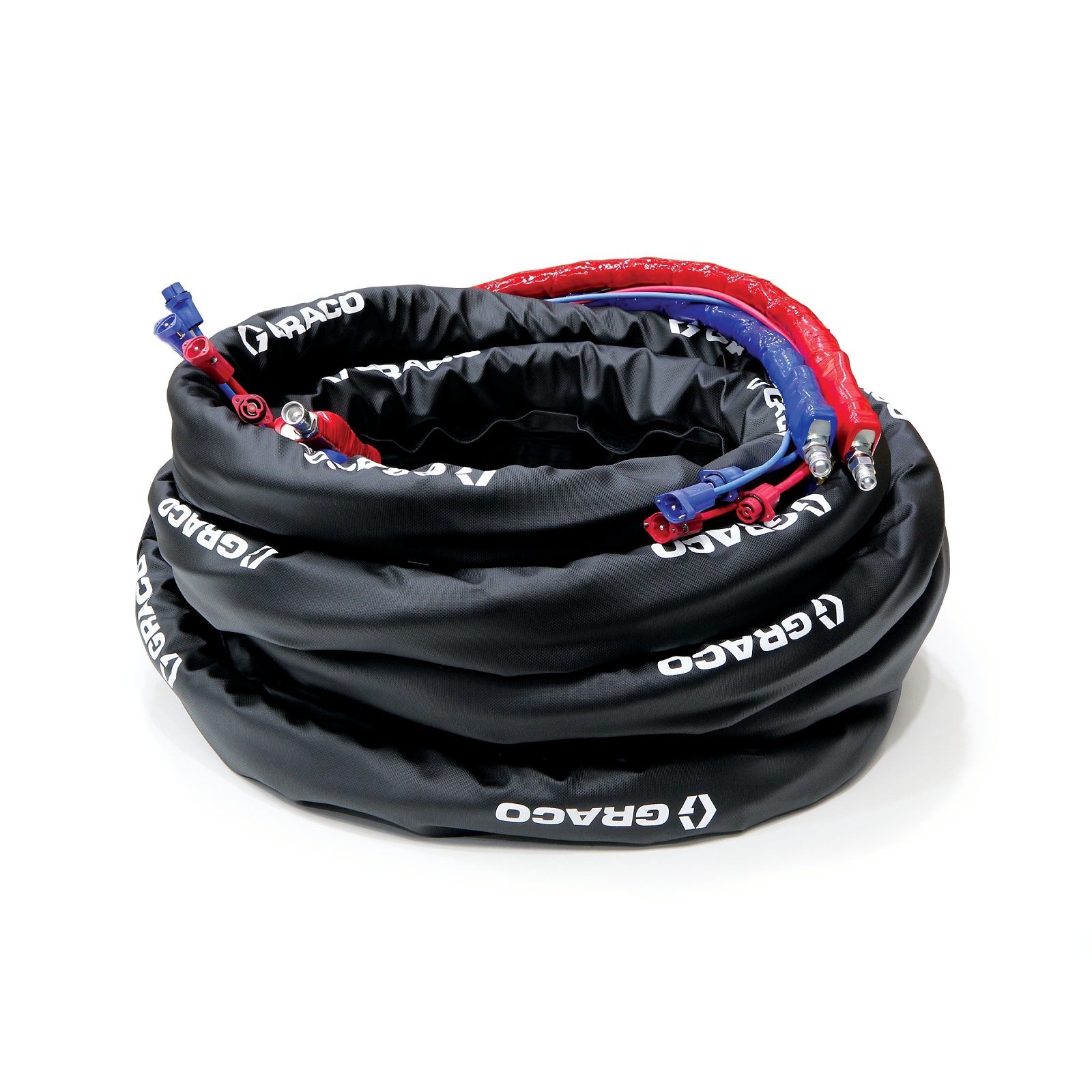

Xcelerator 50 ft x 3/8 in Internal Heated Hose, 2000 psi, Without Cable, Xtreme-Wrap, Reactor 3
Part Number: 25P434
Reactor 3 Xtreme Wrap
Xcelerator 50 ft x 3/8 in Internal Heated Hose, 2000 psi, Without Cable, Xtreme-Wrap, Reactor 3
Part Number: 25P434
Graco’s new Xcelerator heated hoses provide more options and control than ever. All Xcelerator hoses are designed to provide full independent A and B temperature control. This provides more precise pressure balancing and improved material yield. New robust construction provides longer life and reduc...
More Info
Features
Product Brochure
Graco’s new Xcelerator heated hoses provide more options and control than ever. All Xcelerator hoses are designed to provide full independent A and B temperature control. This provides more precise pressure balancing and improved material yield. New robust construction provides longer life and reduced maintenance.
Xcelerator heated hoses come as internally or externally heated hoses, that are independently temperature controlled. The new internally heated hoses have 40% faster warm-up times, are 40% more flexible, and have a 35% smaller diameter compared to traditional externally heated hose.
- Temperature Control
- Fully-independent A and B temperature control
- Heated Hose
- Internally heated and externally heated options
- Variety of Lengths
- Available in both 50 ft and 100 ft lengths: Minimizes fluid and electrical connections
- Optimized for Resistance Control Mode
- Reduces maintenance and issues with no cables or sensors required
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Sprayer | Reactor 3 |
|---|---|
| Hose Heating Type | Internal Heated |
| Hose Length (ft) | 50 |
| Inside Diameter (in) | 0.375 |
| Maximum Working Pressure (psi) | 2000 |
| Model | Reactor 3 |
| Scuff Guard Type | Xtreme Wrap |
| Series | Xtreme Wrap |
| Temperature Wire | Without Cable |
| Type | Heated Hose |
| Compatible Sprayer | Reactor 3 |
| Hose Heating Type | Internal Heated |
| Inside Diameter (in) | 0.375 |
| Maximum Working Pressure (psi) | 2000 |
| Model | Reactor 3 |
| Scuff Guard Type | Xtreme Wrap |
| Series | Xtreme Wrap |
| Temperature Wire | Without Cable |
| Type | Heated Hose |
