GrindLazer Professional Series
GrindLazer Pro DC1013 G DCS Gas-Powered Scarifier
Part Number: 25N668
![product image](/content/dam/pim/graco/ced/pavement/25N668_GrindLazer_Pro_DC1013_G_DCS_190604_Main.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/pavement/25N668_GrindLazer_Pro_DC1013_G_DCS_190604_Alt_1.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/pavement/25N668_GrindLazer_Pro_DC1013_G_DCS_190604_Alt_2.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/pavement/25N668_GrindLazer_Pro_DC1013_G_DCS_190604_Alt_3.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
![product image](/content/dam/pim/graco/ced/pavement/25N668_GrindLazer_Pro_DC1013_G_DCS_190604_Alt_4.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
GrindLazer Professional Series
GrindLazer Pro DC1013 G DCS Gas-Powered Scarifier
Part Number: 25N668

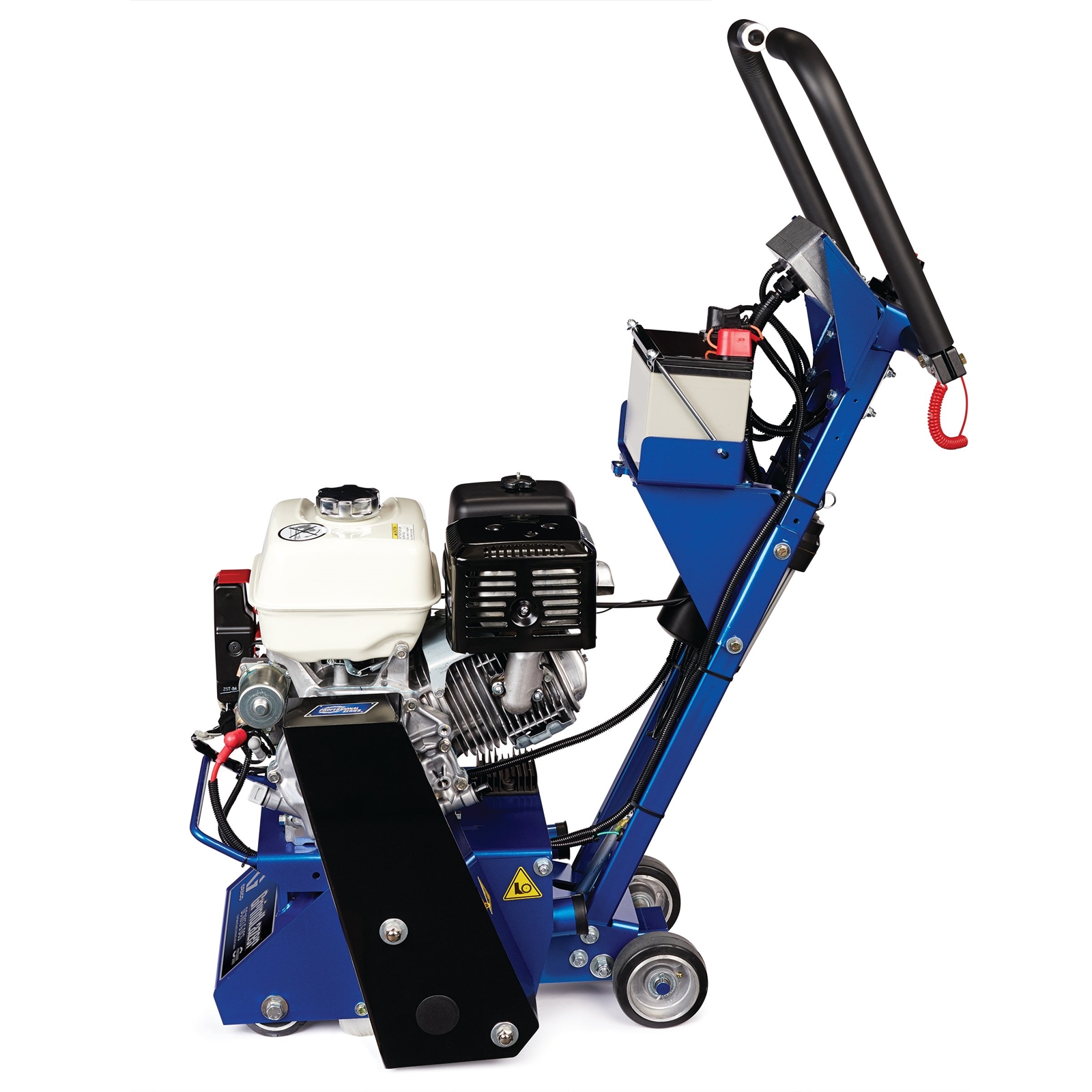

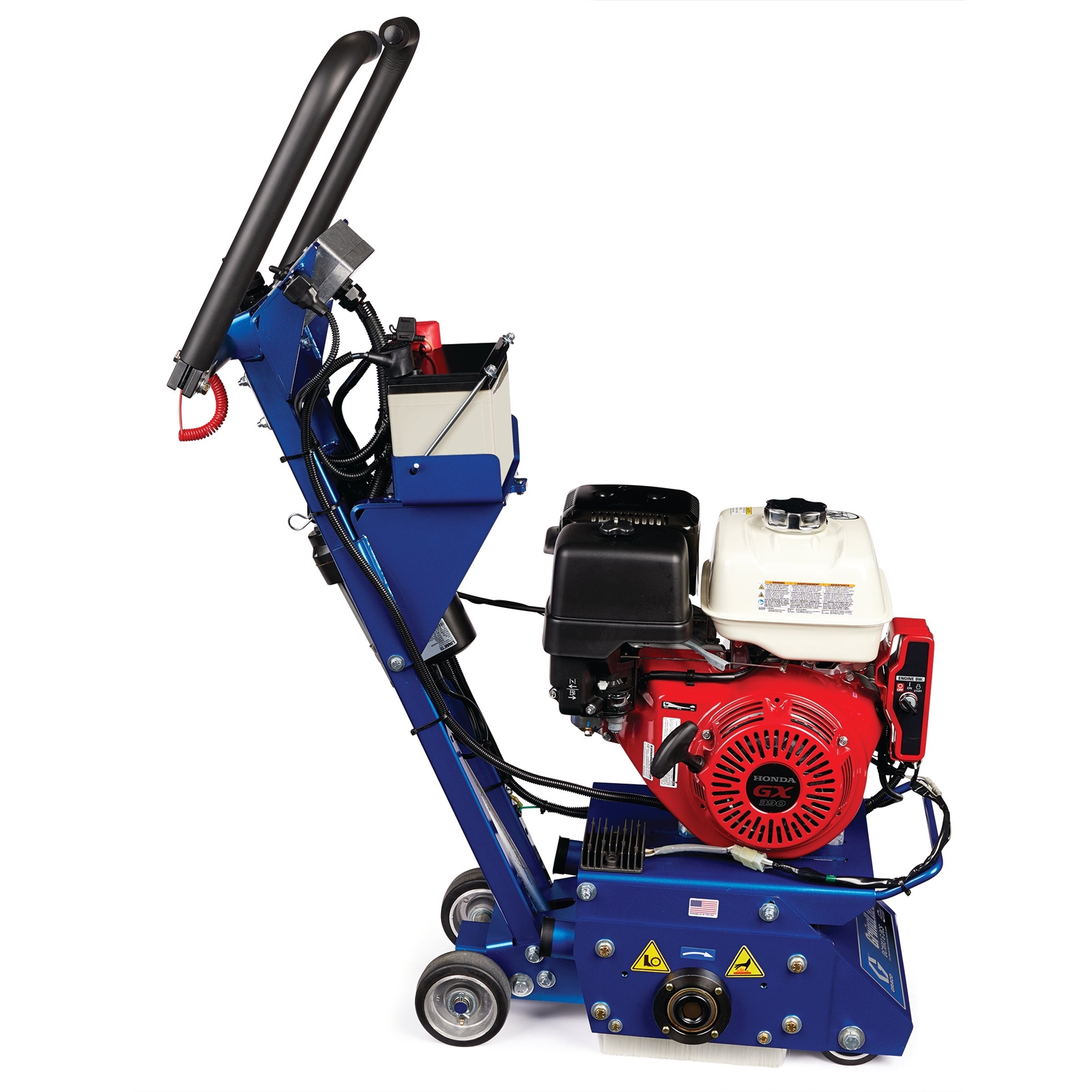

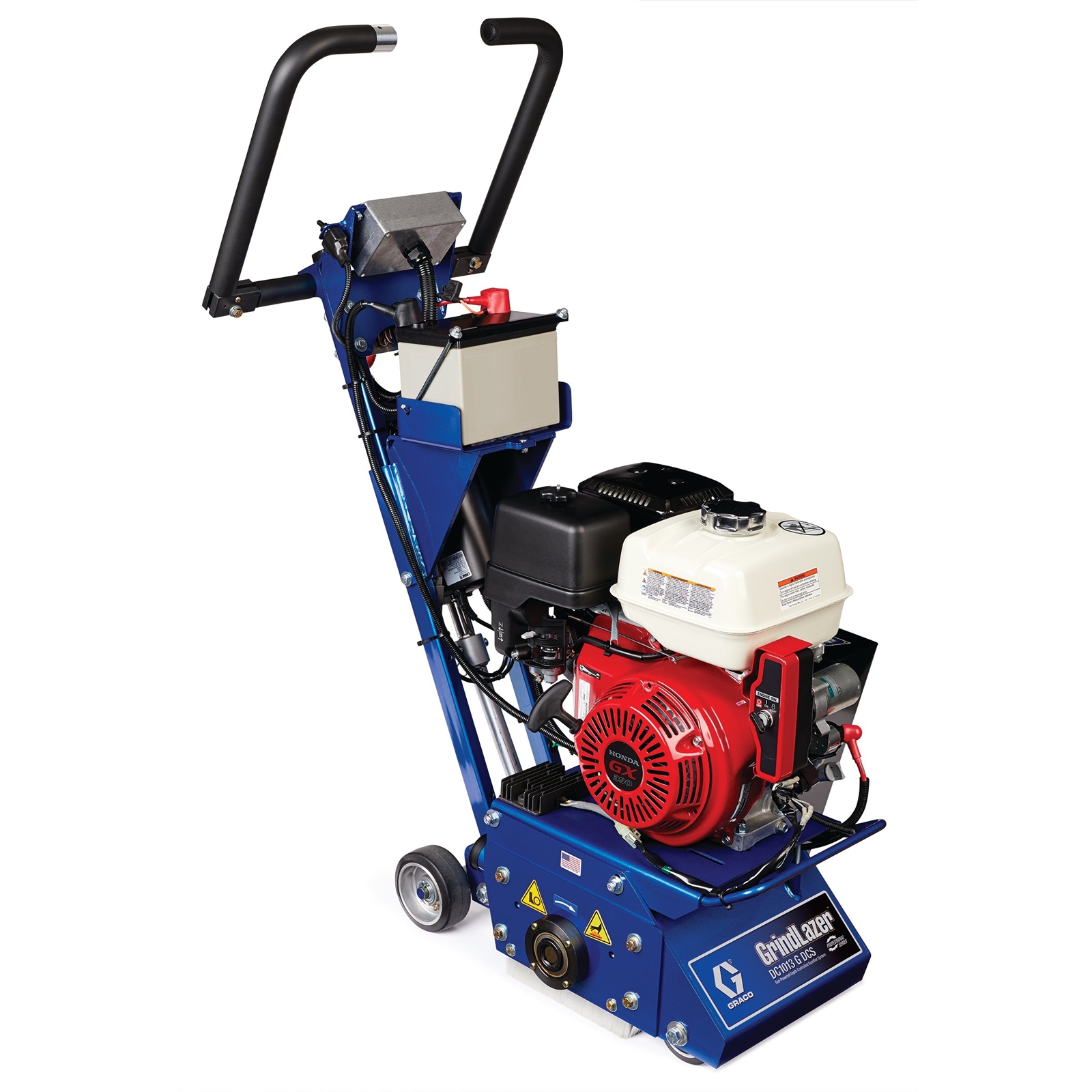

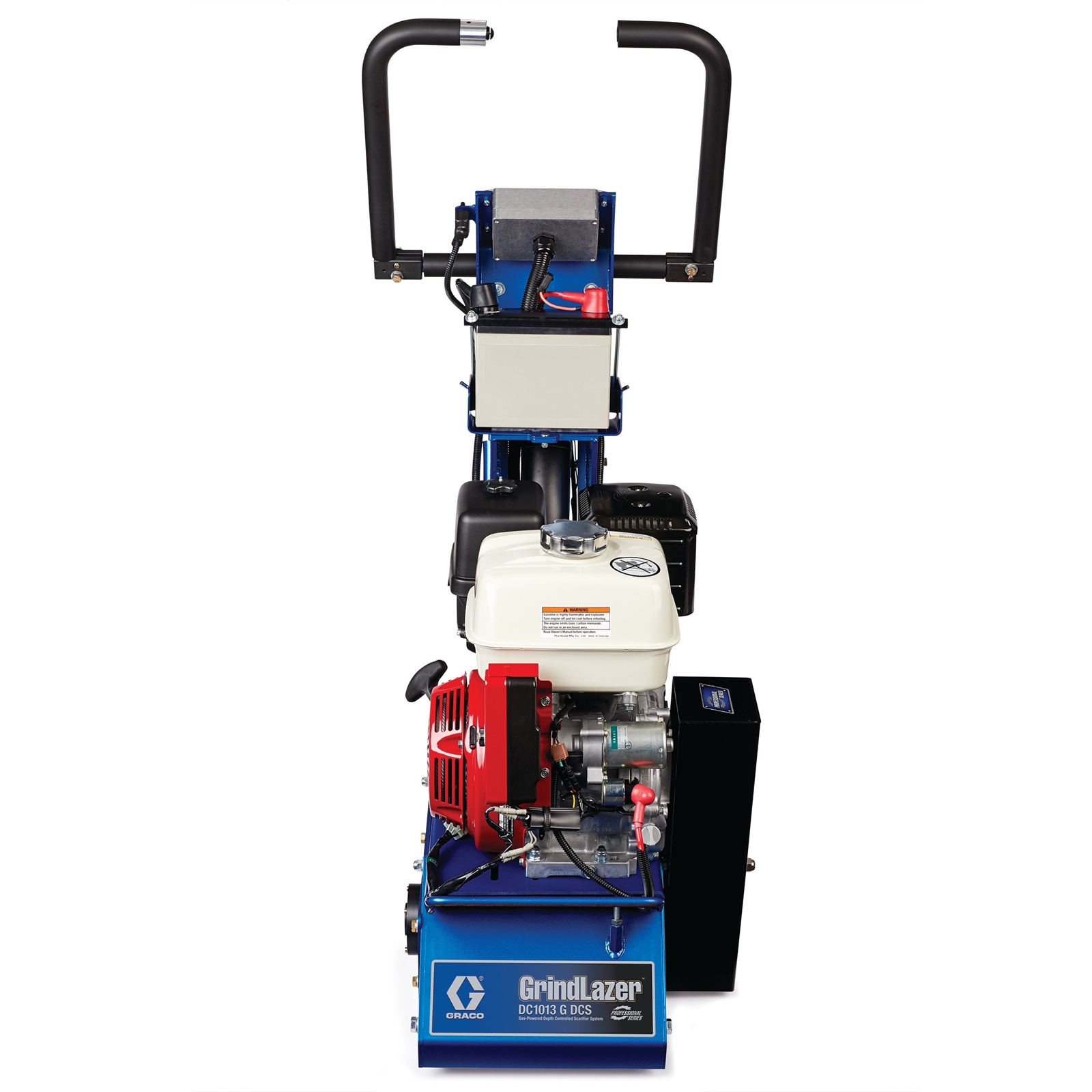

The GrindLazer Pro DC1013 G DCS is a high-output drum style scarifier with a 13 HP Honda engine, electric start, a 10 inch (25.4 cm) maximum cut width and larger selection of cutters for marking removal, leveling and surface preparation.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The GrindLazer Pro DC1013 G DCS is a high-output drum style scarifier with a 13 HP Honda engine, electric start, a 10 inch (25.4 cm) maximum cut width and larger selection of cutters for marking removal, leveling and surface preparation.
- Depth Control System
- Eliminate Measuring & Guesswork
- Quickly & easily adjust the cutter depth to align with ever-changing terrain
- Accurate cut depth for tape or thermoplastic inlays
- Eliminates damage due to “dropped drums”

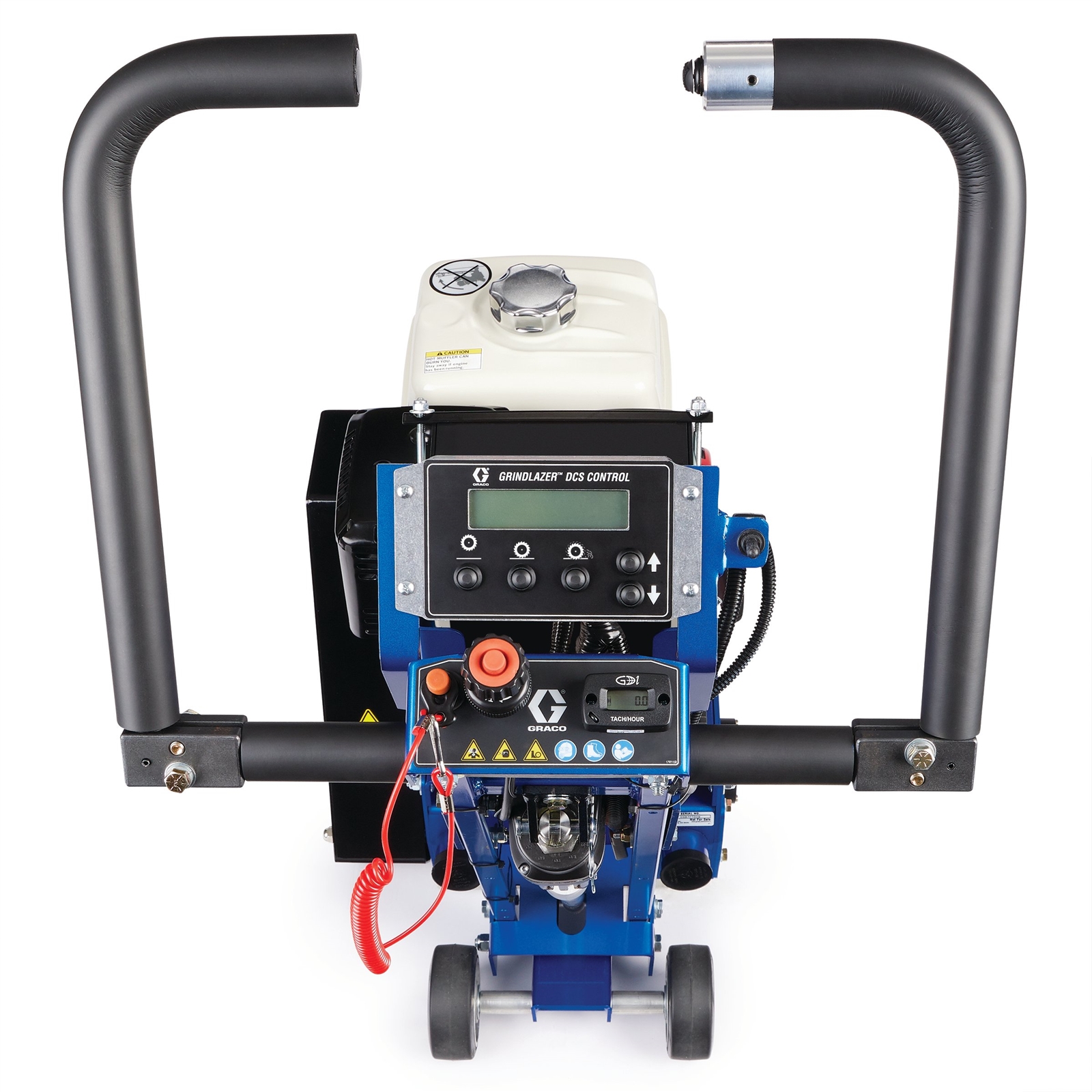

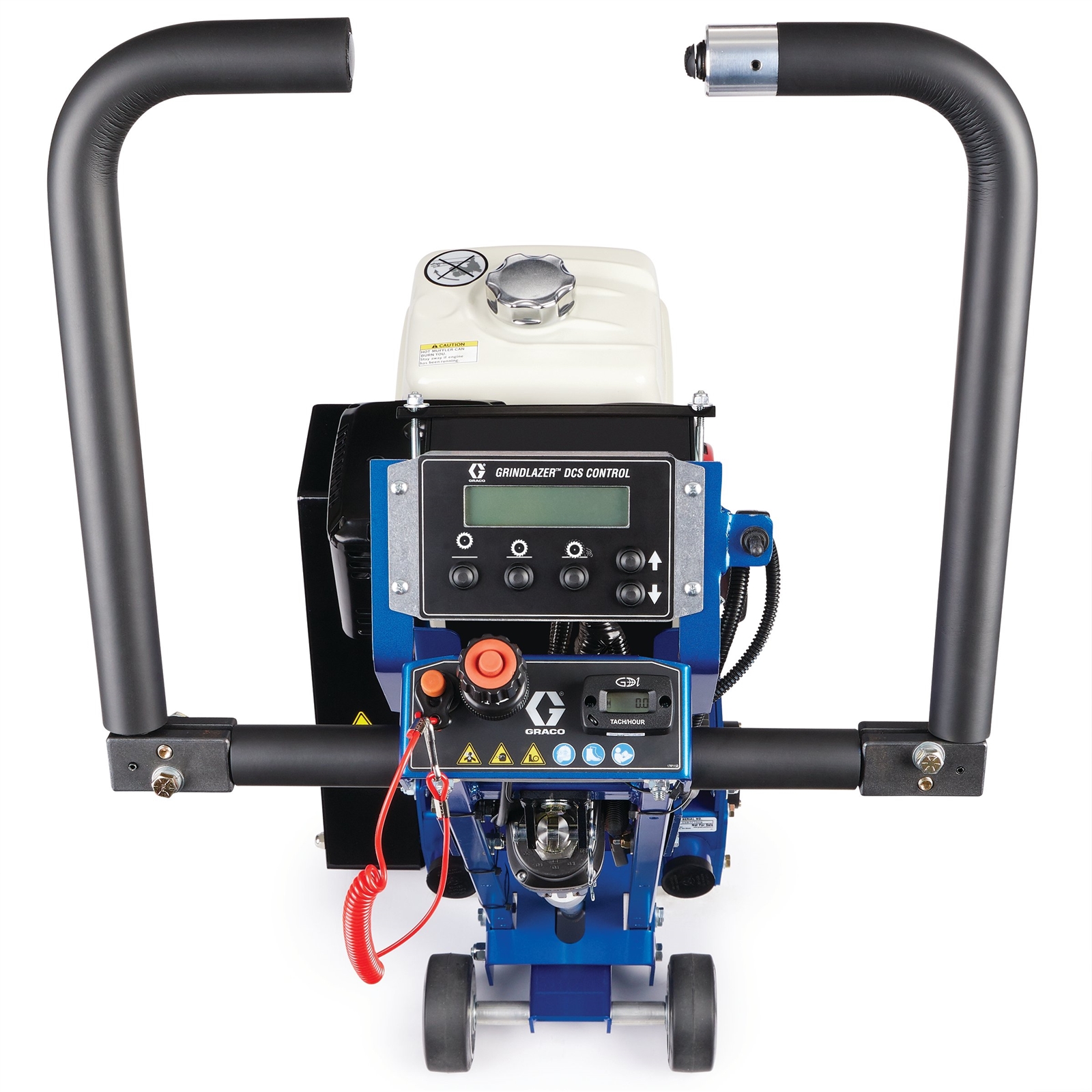

- DCS Controller with LiveLook Display
- Ultimate Control & Application Flexibility
- User settable “zero point” to match cutter assembly
- Displays “active depth”
- English and metric units
- Robust design stands up the harsh abuse
- Fully-encapsulated electronic components
- Ultimate protection from vibration, jobsite and weather conditions
- Remote Momentary Switch
- Total Operator Control
- Control cut depth while keeping both hands on the GrindLazer
- Heavy-Duty All-Steel Frame
- Heavy-duty design will hold up to the harsh jobsite environment
- Durable 13 HP Honda® Power With Cyclone Filter
- Contractor-Preferred Power
- Cyclone filter protects the engine from harmful airborne dust
- Center-Weight Design
- Efficient “No-Bounce" Cutting
- Better control for a better quality cut
- Precision All-Steel Wheel Assemblies
- Accurate Cuts & Long Life
- Accurate Cuts & Long Life
- Anti-Vibration Handlebars
- Padded for minimal vibration transfer for all-day comfort
- Sealed Main Bearing
- Maintenance-Free Design
- Long life and ease-of-use
- Additional Features
- Heavy-Duty Wide HTD Drive Belt
- Vacuum Port for optional LazerVac vacuum system
- Dual Purpose Tachometer and Hour Meter
Specifications & Documents
Technical Specifications
Convert to MetricAir Filter Type | Cyclone |
---|---|
Cutter Drum Diameter (in) | 7 |
Cutter Type | Drum |
Depth Adjustment | Depth Control System (DCS) |
Engine Brand | Honda |
Engine Model | GX390 |
Engine Size (HP) | 13 |
Engine Start Type | Electric Start |
Maximum Cut Rate (ft2/hr) | 700 |
Maximum Cut Width (in) | 10 |
Model | GrindLazer |
Product Series | Professional |
Series | Professional Series |
Type | Concrete Scarifier |
Vacuum Port | Yes |
Air Filter Type | Cyclone |
Cutter Drum Diameter (in) | 7 |
Cutter Type | Drum |
Depth Adjustment | Depth Control System (DCS) |
Engine Brand | Honda |
Engine Model | GX390 |
Engine Start Type | Electric Start |
Maximum Cut Width (cm) | 25 |
Maximum Cut Width (mm) | 254 |
Model | GrindLazer |
Product Series | Professional |
Series | Professional Series |
Type | Concrete Scarifier |
Vacuum Port | Yes |
