ToughTek P30HT

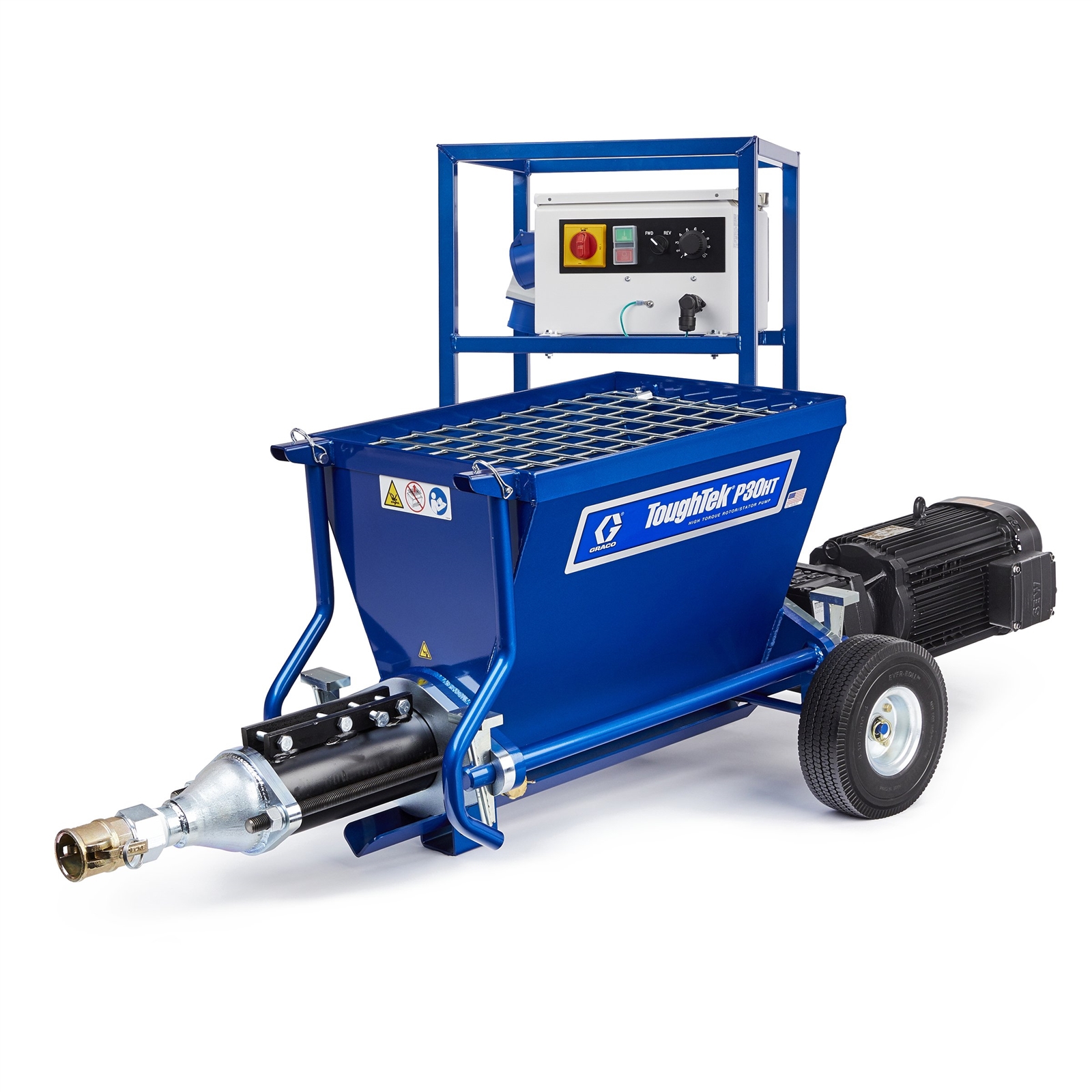

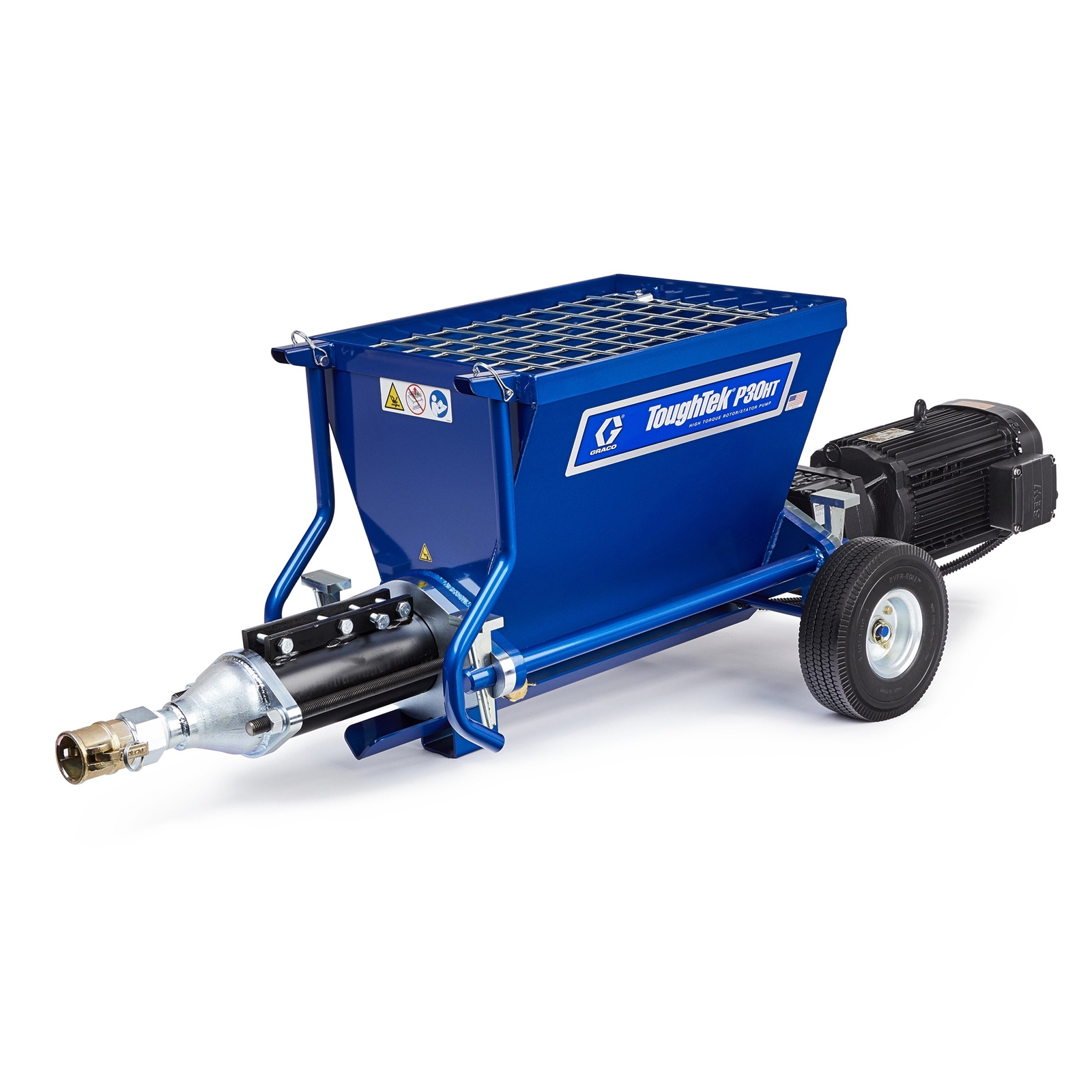

ToughTek P30HT Bare Rotor Stator Pump System, 230V, 30A, 1Ph

Part Number: 25M032

product image product image

ToughTek P30HT

ToughTek P30HT Bare Rotor Stator Pump System, 230V, 30A, 1Ph

Part Number: 25M032

If you like the compact size of the P20 rotor stator pump, but are looking for more output, the ToughTek P30HT is the perfect fit for your business. Upgrade to this pump if you plan to use epoxy-based mortars (or other thick high-viscosity materials) or plan to spray taller buildings, such as sport ...

More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

If you like the compact size of the P20 rotor stator pump, but are looking for more output, the ToughTek P30HT is the perfect fit for your business. Upgrade to this pump if you plan to use epoxy-based mortars (or other thick high-viscosity materials) or plan to spray taller buildings, such as sport stadiums, high-rises, apartment complexes, hospitals and parking garages to name a few.

Built for mid-range mortar applications

  • Easy to use, easy to move
  • Variable pump output lets you adjust material flow
  • Optional remote control operation
  • Flow rate: 10 gpm (38 lpm)
  • Output (underlayment): 200 bags per hour (based on 50-lb/22.6 kg bags)
  • Pumping distance: 100 feet + (30 m)
  • Pumping height: 60 feet (18 m)
  • Reversible pump direction
  • Hopper capacity: 16 Gal (60.6 L)
  • Power requirements: 230V, 30A, 1-ph

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing
Fluid Inlet Size (in) 3.8
Fluid Outlet Size (in) 1.5
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Maximum Flow Rate (GPM) 9.8
Maximum Working Pressure (MPa) 2.1
Maximum Working Pressure (psi) 300
Model ToughTek
Motor Type Electric
Overall Height (ft) 2.0
Overall Height (in) 24
Overall Length (ft) 5.83
Overall Length (in) 70
Overall Width (ft) 2.08
Overall Width (in) 25
Power Rating (HP) 7.5
Power Rating (W) 5593
Power Rating (kW) 5.59
Series P30HT
Type Electric Rotor Stator Pump
Weight (lb) 300
Wetted Parts Tool Steel, Painted Steel, Plated Steel, PORON
Compatible Material Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing
Fluid Inlet Size (cm) 9.7
Fluid Inlet Size (in) 3.8
Fluid Inlet Size (mm) 96.5200
Fluid Outlet Size (cm) 3.81
Fluid Outlet Size (in) 1.5
Fluid Outlet Size (mm) 38.1
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Maximum Working Pressure (MPa) 2.1
Maximum Working Pressure (bar) 20.7
Maximum Working Pressure (kPa) 2070
Maximum Working Pressure (psi) 300
Model ToughTek
Motor Type Electric
Overall Height (cm) 60.96
Overall Height (m) 0.61
Overall Height (mm) 609.6
Overall Length (cm) 178
Overall Length (m) 1.78
Overall Length (mm) 1778
Overall Width (cm) 63.50
Overall Width (m) 0.64
Overall Width (mm) 635.00
Power Rating (W) 5593
Power Rating (kW) 5.59
Series P30HT
Type Electric Rotor Stator Pump
Weight (kg) 136.1
Wetted Parts Tool Steel, Painted Steel, Plated Steel, PORON

Repair Parts

Part No. Description
MTA755 KIT,ASSY,5.5KW,SEW
