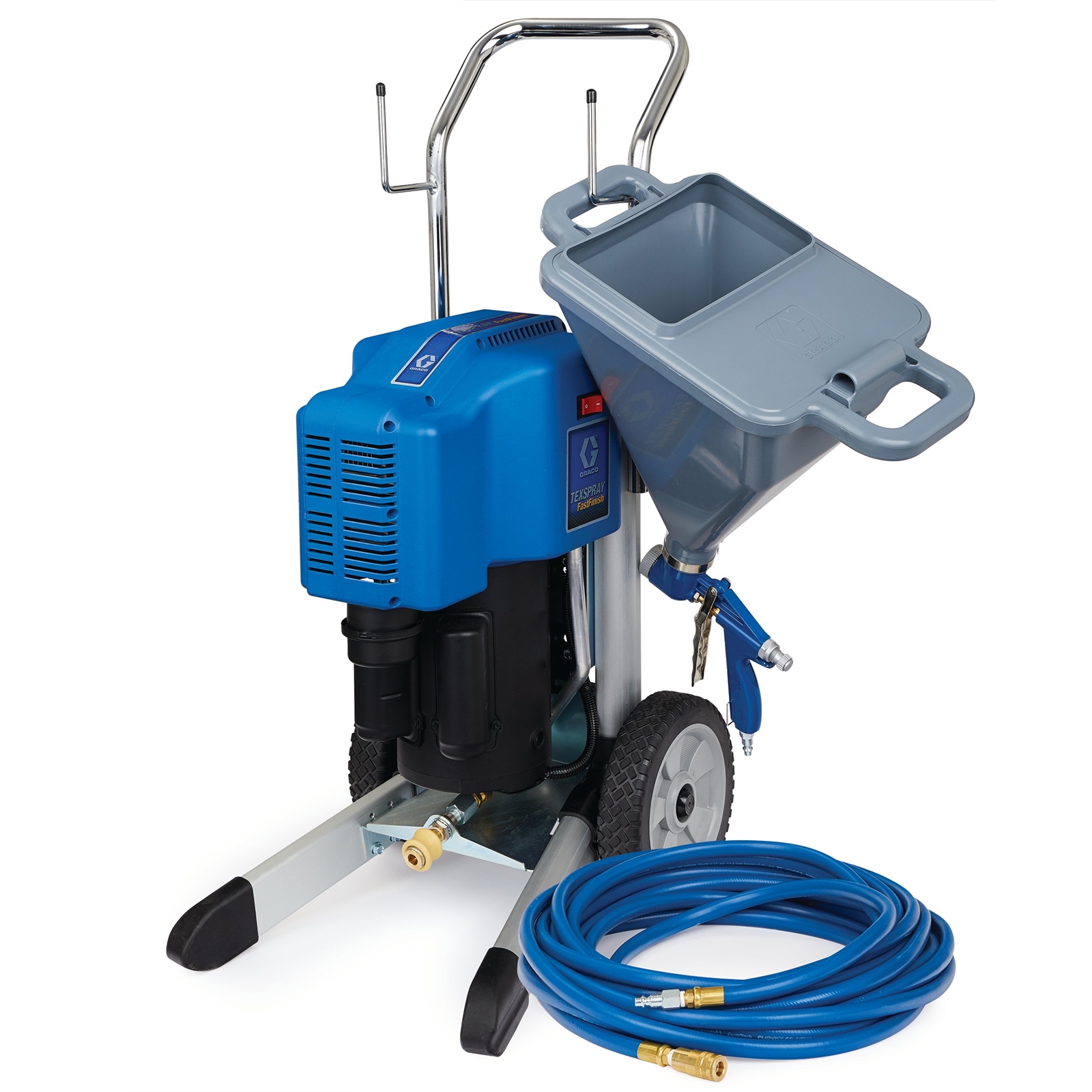

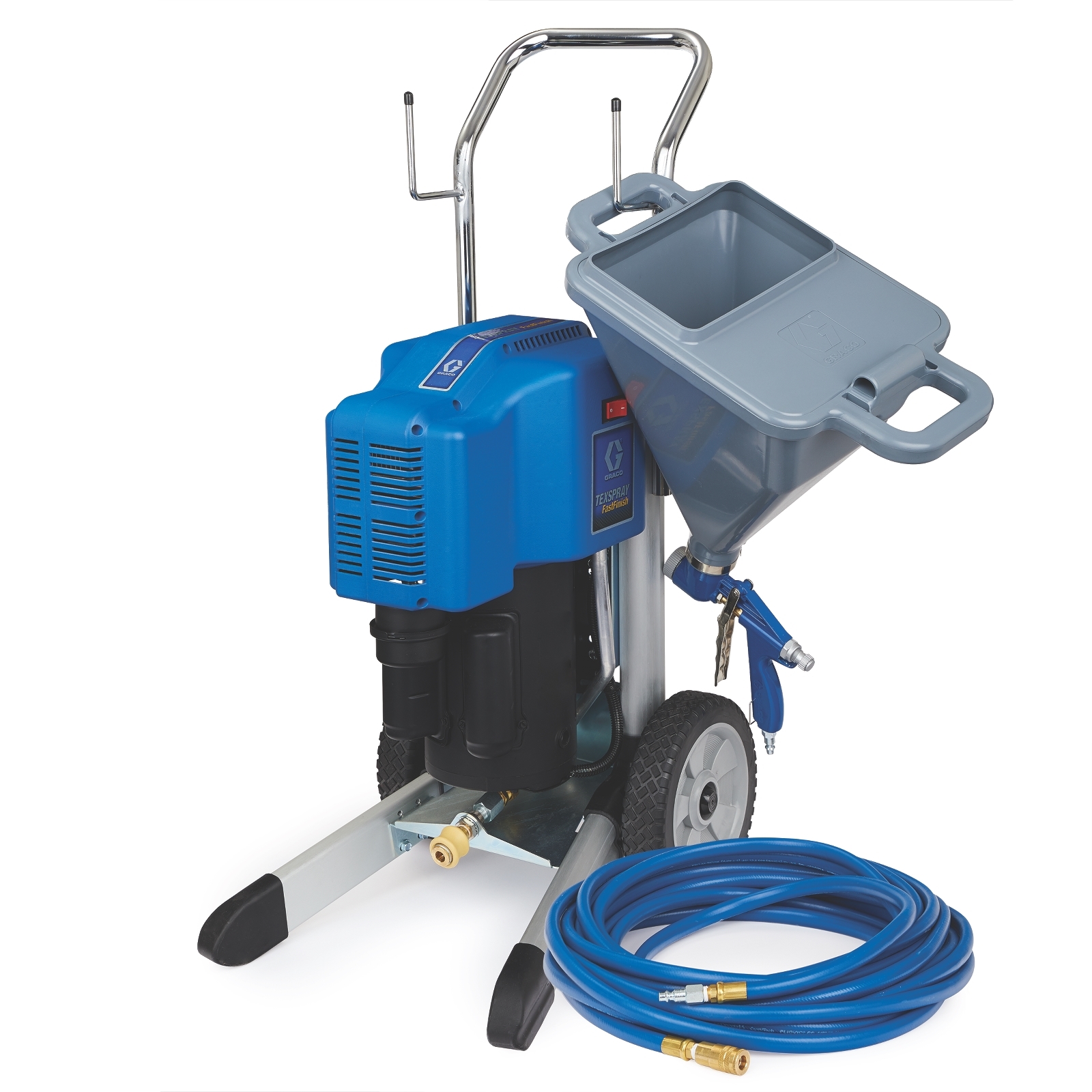

TexSpray FastFinish

TexSpray FastFinish Standard System

Part Number: 25D494

product image

TexSpray FastFinish

TexSpray FastFinish Standard System

Part Number: 25D494

Finish smaller texture jobs faster. The portable TexSpray FastFinish Standard System maximizes material and airflow with a high-output, continuous flow air compressor to deliver exceptional texture finishes with a durable gravity fed hopper gun.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Finish smaller texture jobs faster. The portable TexSpray FastFinish Standard System maximizes material and airflow with a high-output, continuous flow air compressor to deliver exceptional texture finishes with a durable gravity fed hopper gun.
  • FastFinish CF9 Air Compressor
    • 100% Spray Time with Continuous Air Flow
    • Powerful 9 cfm @ 40 psi (Maximum Pressure 60 psi)
    • Heavy-duty 2 HP AC Motor
    • Piston-Powered Tank-less Design
    • Ready to Spray: No Draining or Maintenance
    • Small, One-Person Portability
    • Specifically Designed for use with Hopper Guns
  • G-TEX Gravity-Feed Hopper Gun
    • 1.5 Gallon (5.7 Liter) Hopper
    • Durable metal gun body
    • Includes 4mm, 6mm & 8mm metal nozzles

Specifications & Documents

Technical Specifications

Convert to Metric
Hose Inlet Diameter (in) 3/8
Includes G-TEX Gravity-Feed Hopper Gun, FastFinish CF9 Air Compressor, 3/8 in X 50 ft Non-Marking Air Hose, 4 mm Nozzle, 6 mm Nozzle, 8 mm Nozzle
Maximum Hose Length (ft) 50
Model TexSpray
Power Source Electric
Recommended Annual Usage Up to 1,500 gallons per year
Series FastFinish
Spray Gun Type G-TEX Gravity-Fed Hopper Gun
Sprayer Type Air Spray
Technology Type Air Spray
Type Air-Powered Sprayer
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (in) 3/8
Hose Inlet Diameter (mm) 9.525
Includes G-TEX Gravity-Feed Hopper Gun, FastFinish CF9 Air Compressor, 3/8 in X 50 ft Non-Marking Air Hose, 4 mm Nozzle, 6 mm Nozzle, 8 mm Nozzle
Maximum Hose Length (m) 15.0
Model TexSpray
Power Source Electric
Recommended Annual Usage Up to 1,500 gallons per year
Series FastFinish
Spray Gun Type G-TEX Gravity-Fed Hopper Gun
Sprayer Type Air Spray
Technology Type Air Spray
Type Air-Powered Sprayer

What's Included

Part No. Description Qty Unit
25D497 G-TEX Gravity-Feed Hopper Gun 1 ea
25D490 FastFinish CF9 Air Compressor 1 ea
17U302 HOSE, AIR, NITRILE, WPR150, 3/8 ID 1 ea
17V694 Nozzle Kit 4 mm, 6 mm, & 8 mm 1 ea

Repair Parts

Part No. Description
25D497 G-TEX Gravity-Feed Hopper Gun
