ToughTek f340e

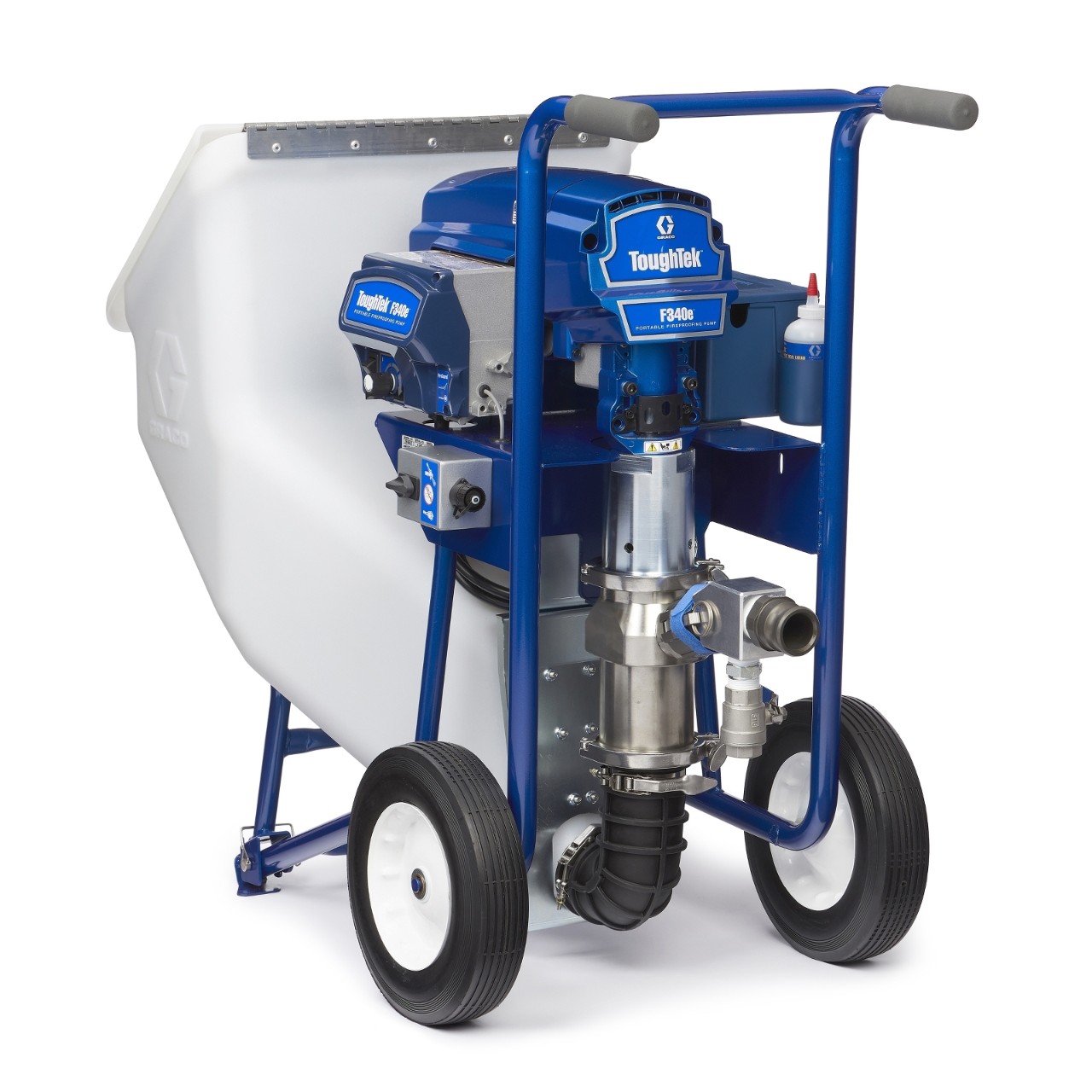

ToughTek F340e Cementitious Fireproofing Sprayer, 120V
Part Number: 25B502
ToughTek f340e
ToughTek F340e Cementitious Fireproofing Sprayer, 120V
Part Number: 25B502
When you're doing small jobs or patchwork, look no further than the F340e. With it's compact size and unmatched performance, it outperforms other patch pumps so you can finish up to 2X faster - while using longer hose lengths and smaller diameter hose.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
When you're doing small jobs or patchwork, look no further than the F340e. With it's compact size and unmatched performance, it outperforms other patch pumps so you can finish up to 2X faster - while using longer hose lengths and smaller diameter hose.
Graco's double-displacement piston pump technology offers unmatched performance. Oversized clearances ensure minimal pressure drop and trouble-free performance.
- Durable Quick-Access Piston-Pump
- Heavy-duty steel construction for long life and everyday performance
- Oversized inlet and internal passages for trouble-free pumping
- Quick-access design for fast and easy maintenance
- MaxPower DC Brushless Motor
- High-torque = more work done
- No maintenance design
- Totally-enclosed design keeps dust and debris out
- Adjustable Material Flow Control
- Dial in the exact flow needed for your job
- High or low flow — you decide

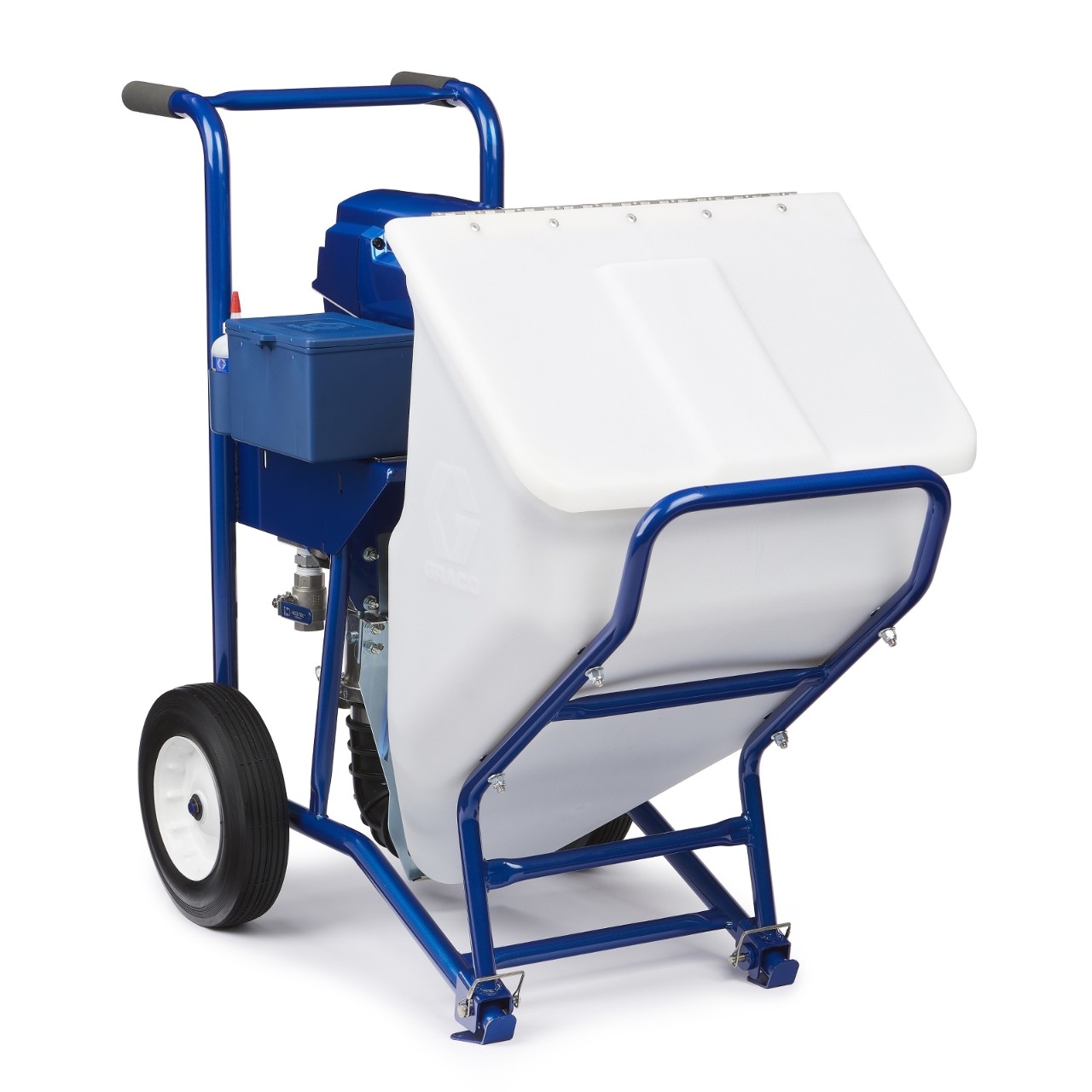

- Durable Frame and Hopper
- Durable 20 gallon polyethylene hopper with lid holds a full bag of mixed material
- Easily mix and pour with standard barrel mixers
- All steel frame construction for years of service
- Flatproof tires resist jobsite debris
- No-Tools Hopper Removal
- Disconnects in seconds for easy cleaning
- Convenient 120V Power
- Works on a standard 120V wall outlet
- No electrician or rewiring needed
- Compact and Portable
- Weighs only 210 lb
- Easy to transport
- Minimize your hose lengths/hassles by bringing the sprayer closer to your work
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Fireproofing |
|---|---|
| Compatible Material | Cementitious Material |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Section Type | 2-Ball |
| Hopper Capacity (gal) | 20 |
| Input Voltage (V ac) | 120 |
| Material | Fireproofing |
| Material Output (bags/hr) | 20 |
| Maximum Continuous Cycle Rate (CPM) | 150 |
| Maximum Flow Rate (GPM) | 12 |
| Maximum Hose Length (ft) | 150 |
| Maximum Input Amperage (A) | 15 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 4.1 |
| Maximum Working Pressure (psi) | 600 |
| Minimum Operating Temperature (°F) | 32 |
| Model | ToughTek |
| Motor Type | Brushless |
| Portable | Portable |
| Power Rating (HP) | 2 |
| Series | f340e |
| Type | Electric Piston Pump |
| Voltage (V) | 120 |
| Weight (lb) | 205 |
| Application | Fireproofing |
| Compatible Material | Cementitious Material |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Section Type | 2-Ball |
| Input Voltage (V ac) | 120 |
| Material | Fireproofing |
| Material Output (bags/hr) | 20 |
| Maximum Continuous Cycle Rate (CPM) | 150 |
| Maximum Flow Rate (L/min) | 24.61 |
| Maximum Input Amperage (A) | 15 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (MPa) | 4.1 |
| Maximum Working Pressure (bar) | 41.3 |
| Maximum Working Pressure (kPa) | 4130 |
| Maximum Working Pressure (psi) | 600 |
| Minimum Operating Temperature (°C) | 0 |
| Model | ToughTek |
| Motor Type | Brushless |
| Portable | Portable |
| Series | f340e |
| Type | Electric Piston Pump |
| Voltage (V) | 120 |
| Weight (kg) | 93 |
