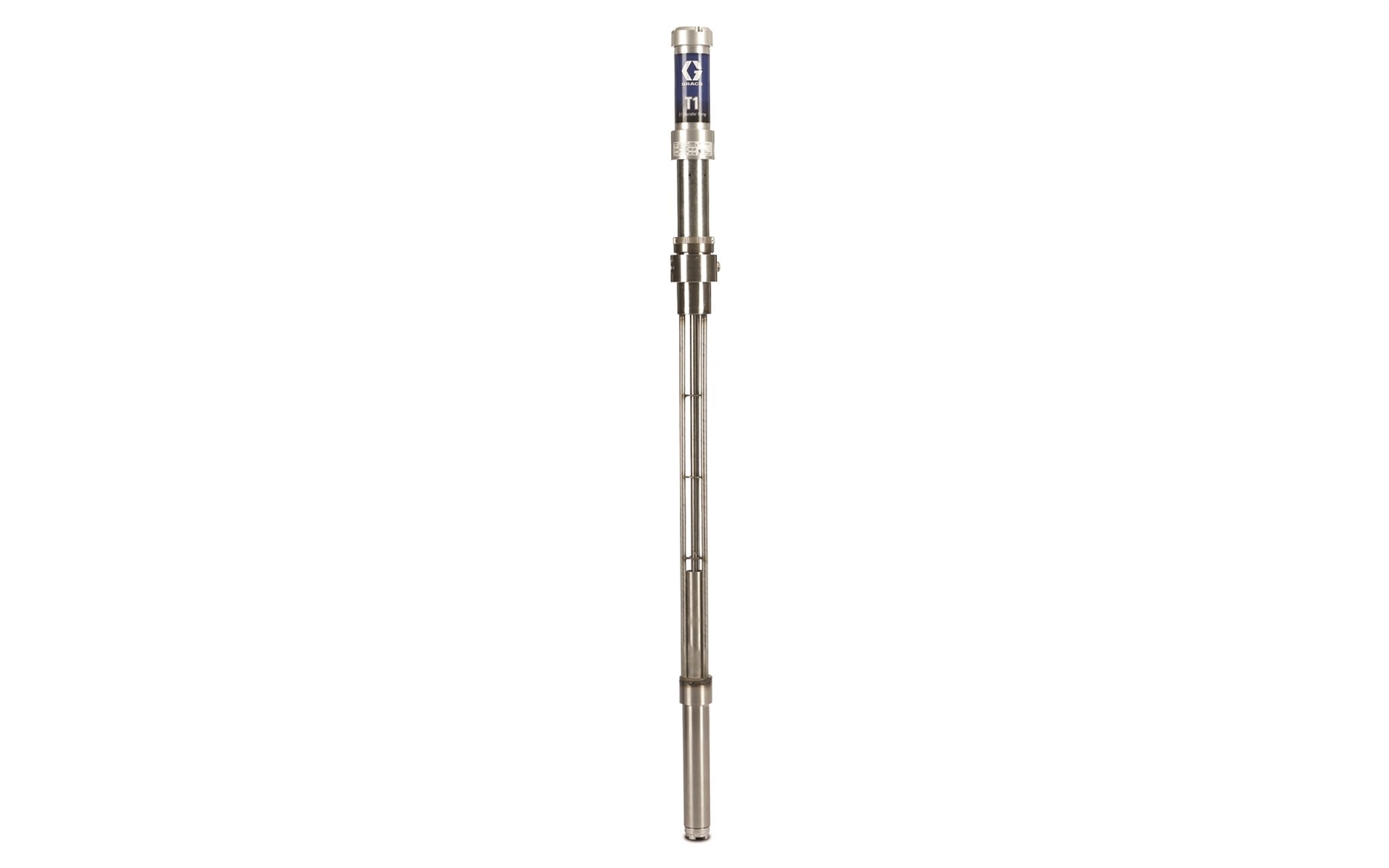

T1 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio
Part Number: 256200
T1
T1 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio
Part Number: 256200
Graco's family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and avai...
More InfoFeatures
Product Brochure
Graco's family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.
Ideal for moving A and B materials to Reactor spray machines.
- Provide consistent feed pressures and flow rates for dependable results
- Lower pressure drops with higher viscosity materials at any ambient temperature
- Designed and manufactured by the worldwide leader in pump technology
- Longer lasting pump - designed for durability with less maintenance
- Quick-release bung adapter for easy drum removal without interference from hose connections
- Stainless steel wetted parts for corrosion-resistance
- PTFE seals for improved performance and less maintenance
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Polyurethane Foam, Polyurea |
| Construction | Stainless Steel |
| Cycles Per Gallon | 40 |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (MPa) | 1.2 |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 100 |
| Maximum Flow Rate (GPM) | 2.5 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 2.5 |
| Maximum Working Pressure (psi) | 360 |
| Model | T1 |
| Package Options | Bare |
| Pump Ratio | 2:1 |
| Seal Material | PTFE |
| Sound Power Level (dB(A)) | 96.8 |
| Sound Pressure Level (dB(A)) | 88.7 |
| Type | Pneumatic Piston Pump |
| Weight (lb) | 18.5 |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Polyurethane Foam, Polyurea |
| Construction | Stainless Steel |
| Cycles Per Gallon | 40 |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Size (mm) | 12.7 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (MPa) | 1.2 |
| Maximum Air Inlet Pressure (bar) | 12.5 |
| Maximum Air Inlet Pressure (kPa) | 1250 |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (CPM) | 100 |
| Maximum Flow Rate (L/min) | 9.5 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Working Pressure (MPa) | 2.5 |
| Maximum Working Pressure (bar) | 25 |
| Maximum Working Pressure (kPa) | 2500 |
| Maximum Working Pressure (psi) | 360 |
| Model | T1 |
| Package Options | Bare |
| Pump Ratio | 2:1 |
| Seal Material | PTFE |
| Sound Power Level (dB(A)) | 96.8 |
| Sound Pressure Level (dB(A)) | 88.7 |
| Type | Pneumatic Piston Pump |
| Weight (kg) | 8.4 |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Repair Parts
| Part No. | Description |
|---|---|
| 256200 | T1 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio |
