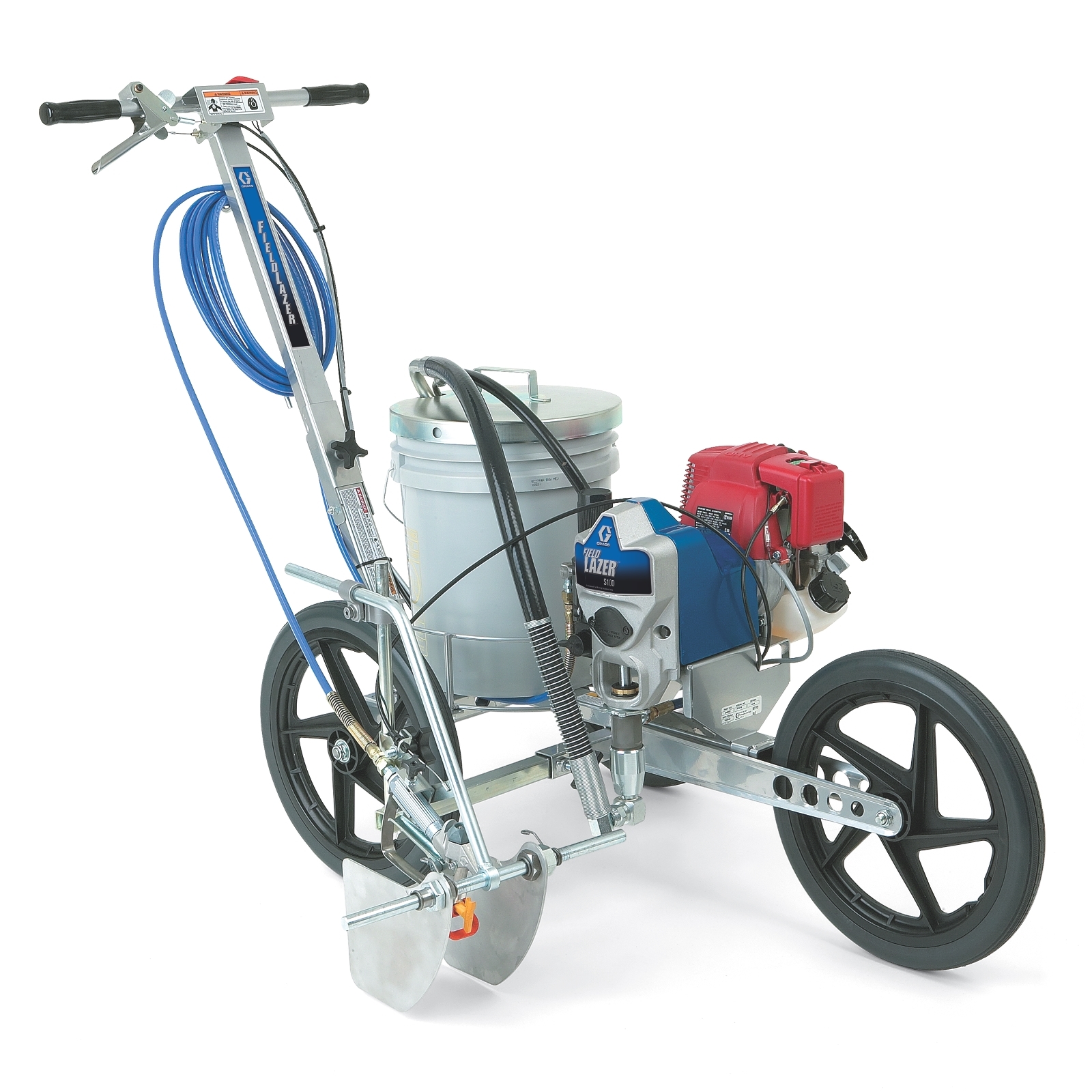

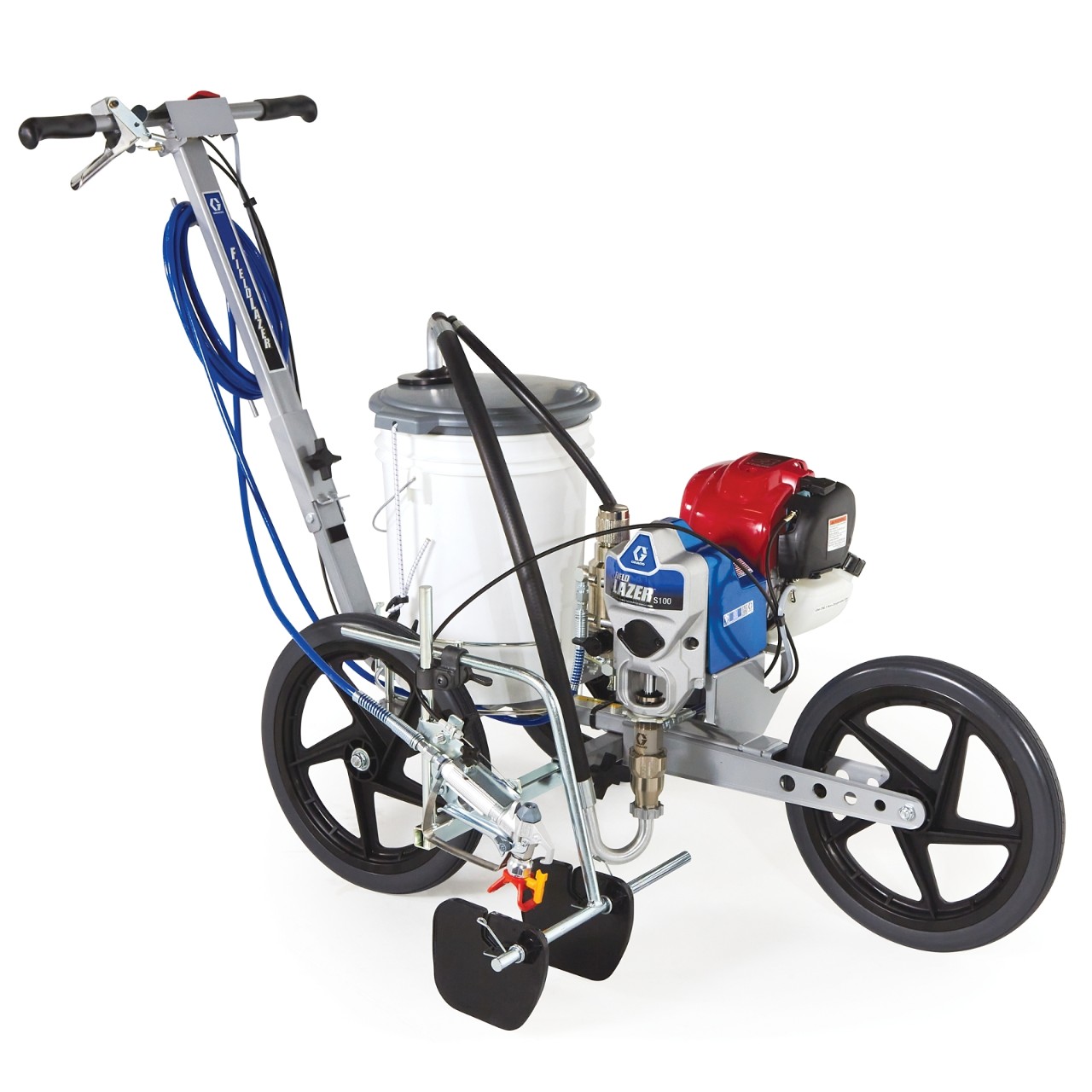

FieldLazer S100
FieldLazer S100 Airless Field Striper
Part Number: 248942
FieldLazer S100
FieldLazer S100 Airless Field Striper
Part Number: 248942
Introduced in 2004, the original FieldLazer striper was the first walk-behind field marker utilizing proven Graco high-pressure airless paint spray technology. It is now recognized by field marking professionals as one of the top walk-behind field marking machines available.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Introduced in 2004, the original FieldLazer striper was the first walk-behind field marker utilizing proven Graco high-pressure airless paint spray technology. It is now recognized by field marking professionals as one of the top walk-behind field marking machines available.
USER-FRIENDLY OPERATION
Easy Reach Handlebar Controls- High-comfort design for greater control and less operator fatigue
- Operator controls are located on the handlebars
DURABLE PUMP
Endurance Pump- Hardened stainless steel rod and cylinder holds up to abrasive materials
- QuikAccess intake for easy cleaning
RELIABLE POWER
Honda® Engine
- Contractor preferred—excellent power and proven reliability
- Easy starting
IMPROVED LINE DEFINITION
Adjustable Spray Guides- Accuracy in windy conditions
- Designed to deliver long, straight lines
- No-tool line width adjustment from 2 to 8 inch line
PRECISE SPRAY CONTROL
FieldLazer RAC 5 Tip- Turn tip 180° to clear clogs
SMOOTHER APPLICATIONS
Exclusive Tall Wheel Design- Easily rolls over rough terrain
- Reduces operator fatigue
COMPACT, USER-FRIENDLY DESIGN
Fold-Down Handle- Fits into minivans, SUVs, even pickups with toppers
FAST AND EASY PAINT HANDLING
5-Gallon Bucket-Ready- Eliminates hassle of cleaning tanks or pots
EASY STENCILING
No-Tool Gun Removal
- Switch for spraying stencils or large solid areas
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Surfaces | Turf |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX35 |
| Features | Adjustable Spray Guides, Disposable Paint Bucket Siphon System, Handlebar Operator Controls |
| Fuel Tank Capacity (gal) | 0.17 |
| Gun Activation | Manual |
| Hopper Volume Capacity (gal) | 5 |
| Includes | SG2 Spray Gun, FieldLazer RAC 5 421 Spray Tip, RAC 5 Guard, 3/16 in x 25 ft BlueMax II Airless Hose, TSL, 4 oz |
| Maximum Sound Pressure Level (dB(A)) | 87 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Working Pressure (psi) | 900 |
| Model | FieldLazer |
| Number of Colors | One Color |
| Number of Guns | 1 |
| Number of Hoppers | 1 |
| Number of Pumps | 1 |
| Power Source | Gas |
| Pump Type | Airless Piston Powered |
| Series | S100 |
| Type | Walk-Behind Line Striper |
| Weight (lb) | 80 |
| Compatible Surfaces | Turf |
| Engine Brand | Honda |
| Engine Model | GX35 |
| Features | Adjustable Spray Guides, Disposable Paint Bucket Siphon System, Handlebar Operator Controls |
| Fuel Tank Capacity (L) | 0.64 |
| Gun Activation | Manual |
| Hopper Volume Capacity (L) | 19 |
| Includes | SG2 Spray Gun, FieldLazer RAC 5 421 Spray Tip, RAC 5 Guard, 3/16 in x 25 ft BlueMax II Airless Hose, TSL, 4 oz |
| Maximum Sound Pressure Level (dB(A)) | 87 |
| Maximum Tip Size (cm) | 0.0533 |
| Maximum Tip Size (in) | 0.021 |
| Maximum Tip Size (mm) | 0.533 |
| Maximum Working Pressure (bar) | 62 |
| Maximum Working Pressure (kPa) | 6200 |
| Maximum Working Pressure (psi) | 900 |
| Model | FieldLazer |
| Number of Colors | One Color |
| Number of Guns | 1 |
| Number of Hoppers | 1 |
| Number of Pumps | 1 |
| Power Source | Gas |
| Pump Type | Airless Piston Powered |
| Series | S100 |
| Type | Walk-Behind Line Striper |
| Weight (kg) | 36.3 |
Product Manuals
Warranty
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 243011 | SG2 Metal Spray Gun | 1 | ea |
| LL5421 | LineLazer RAC 5 SwitchTip, 421 | 1 | ea |
| 243161 | RAC 5 HandTite Tip Guard | 1 | ea |
| 243954 | DuraFlex Hose, 3/16 in x 25 ft | 1 | ea |
| 238049 | TSL Throat Seal Liquid, 4 oz | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 243011 | SG2 Metal Spray Gun |
| 243954 | DuraFlex Hose, 3/16 in x 25 ft |
| 15B071 | INSERT, FILTER |
| 287545 | KIT, AUTO PRESS. RELIEF VALVE |
| 17M875 | KIT, HOSE, SUCTION, FEMALE |
| 244353 | KIT, HOSE, SUCTION, FEMALE, BLACK |
| 117828 | KIT, O-RING, PTFE, ENCAPULATED |
| 246382 | Easy Out Pump Manifold Filter, Short, 100 mesh |
| 246425 | Easy Out Pump Manifold Filter, Short, 30 mesh |
| 246384 | Easy Out Pump Manifold Filter, Short, 60 mesh |
| 246385 | Inlet Strainer, Nylon Cap, 7/8 in |
| 235004 | Inlet Strainer, Nylon Cap, 3/4 in |
| 246383 | Easy Out Pump Manifold Filter, Short, 200 mesh |
| 114954 | SWITCH, ROCKER |
