Fusion MP Specialty

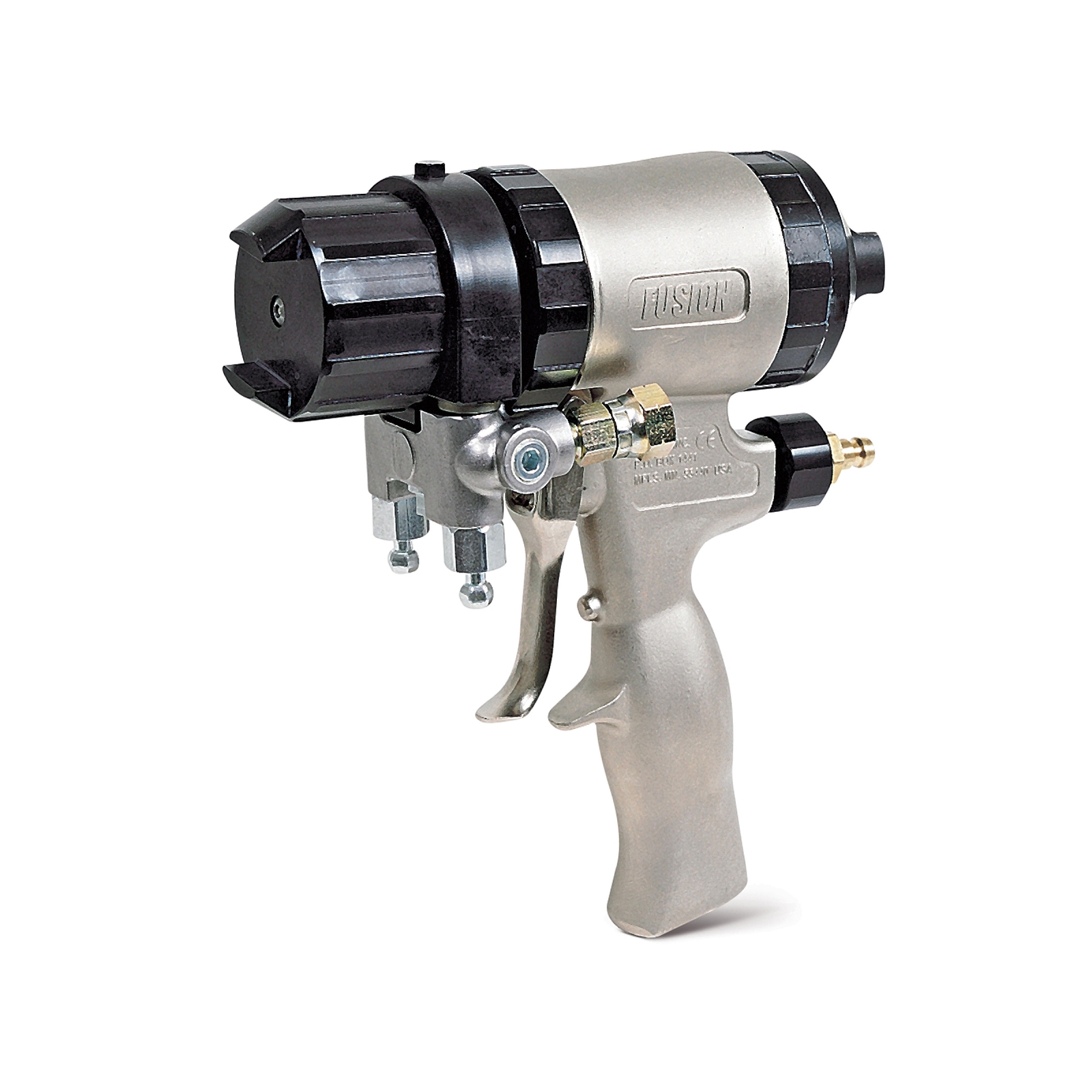

Manual Fusion Solvent-Purge Gun
Part Number: 248597
![product image](/content/dam/pim/graco/aftd/hpcf/fusion-mp-left.jpg/_jcr_content/renditions/cq5dam.web.1280.1280.jpeg)
Fusion MP Specialty
Manual Fusion Solvent-Purge Gun
Part Number: 248597
Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.
Features
Product BrochureWhether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.
For high output spray polyurethane foam and polyurea applications.
Fusion Mechanical Purge (MP) Gun – Designed for superior mixing
- Handles from very low output, thin mil applications to large, high flow, high-output applications just by changing the mix module and tip
- Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
- Smoother finish and better atomization
- Offers more advanced features than all other mechanical-purge guns combined
- Long-lasting mix modules provide excellent mixing
- Advanced mix module and tip design provides excellent mix and material
- properties, and significantly reduces repair and maintenance costs
CeramTip
- Durable and easy to change
- Round and flat patterns
Adjustable Front Packing PolyCarballoy Mix Module
- For proven long life
Adjustable Front Packing PolyCarballoy Mix Module
- For proven long life
-
Contoured Trigger
- Easy two-figure actuation
Ergonomic Handle
- Smooth curved handle improves operator comfort and reduces fatigue
Purge Rod
- Easy-to-set, one piece rod for longer life
Safety Stop
- Manual on/off
Specifications & Documents
Technical Specifications
Convert to MetricAir Inlet Size (in) | 1/4 |
---|---|
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Applicator Type | Manual |
Bleed Type | Bleeder |
Compatible Material | Non-Flammable Foam, Polyurea |
Component A Inlet Size (in) | 1/2-20 |
Component A Inlet Thread Type | UNF |
Component B Inlet Size (in) | 9/16-18 |
Component B Inlet Thread Type | UNF |
Component Type | Plural-Component |
For Use With | Reactor Spray Foam and Coatings Equipment |
Gun Activation | Manual |
Gun Included | 1 |
Gun Type | Solvent Purge Spray Gun |
Gun Weight (lb) | 3.7 |
Gun Weight (oz) | 59.2 |
Maximum Air Inlet Pressure (MPa) | 0.9 |
Maximum Air Inlet Pressure (psi) | 130 |
Maximum Air Pressure (MPa) | 0.9 |
Maximum Air Pressure (psi) | 130 |
Maximum Fluid Pressure (MPa) | 24.1 |
Maximum Fluid Pressure (psi) | 3500 |
Maximum Fluid Temperature (°F) | 200 |
Maximum Fluid Working Pressure (MPa) | 24.2 |
Maximum Fluid Working Pressure (psi) | 3500 |
Minimum Air Inlet Pressure (MPa) | 0.55 |
Minimum Air Inlet Pressure (psi) | 80 |
Model | Fusion MP |
Overall Height (in) | 8.1 |
Overall Length (in) | 9 |
Overall Width (in) | 3.5 |
Product Type | Spray Gun |
Purge Method | Liquid |
Series | Specialty |
Sound Power Level (dB(A)) | 79.9 |
Sound Pressure Level (dB(A)) | 70 |
Spray Gun Mix Type | Static Mix |
Trigger Lock | Locking |
Trigger Type | Two-Finger |
Type | Spray Gun |
Wetted Parts | Aluminum, Stainless Steel, Carbon Steel, Chemically Resistant O-Rings, UHMWPE, Polycarballoy, Nylon |
Air Inlet Size (cm) | 0.635 |
Air Inlet Size (in) | 1/4 |
Air Inlet Size (mm) | 6.35 |
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Applicator Type | Manual |
Bleed Type | Bleeder |
Compatible Material | Non-Flammable Foam, Polyurea |
Component A Inlet Size (cm) | 1.27 |
Component A Inlet Size (in) | 1/2-20 |
Component A Inlet Size (mm) | 12.7 |
Component A Inlet Thread Type | UNF |
Component B Inlet Size (cm) | 1.42875 |
Component B Inlet Size (in) | 9/16-18 |
Component B Inlet Size (mm) | 14.2875 |
Component B Inlet Thread Type | UNF |
Component Type | Plural-Component |
For Use With | Reactor Spray Foam and Coatings Equipment |
Gun Activation | Manual |
Gun Included | 1 |
Gun Type | Solvent Purge Spray Gun |
Gun Weight (g) | 1680 |
Gun Weight (kg) | 1.68 |
Gun Weight (oz) | 59.2 |
Maximum Air Inlet Pressure (MPa) | 0.9 |
Maximum Air Inlet Pressure (bar) | 9 |
Maximum Air Inlet Pressure (kPa) | 900 |
Maximum Air Inlet Pressure (psi) | 130 |
Maximum Air Pressure (MPa) | 0.9 |
Maximum Air Pressure (bar) | 9 |
Maximum Air Pressure (kPa) | 900 |
Maximum Air Pressure (psi) | 130 |
Maximum Fluid Pressure (MPa) | 24.1 |
Maximum Fluid Pressure (bar) | 241 |
Maximum Fluid Pressure (kPa) | 24100 |
Maximum Fluid Pressure (psi) | 3500 |
Maximum Fluid Temperature (°C) | 93 |
Maximum Fluid Working Pressure (MPa) | 24.2 |
Maximum Fluid Working Pressure (bar) | 242 |
Maximum Fluid Working Pressure (psi) | 3500 |
Minimum Air Inlet Pressure (MPa) | 0.55 |
Minimum Air Inlet Pressure (bar) | 5.5 |
Minimum Air Inlet Pressure (kPa) | 550 |
Minimum Air Inlet Pressure (psi) | 80 |
Model | Fusion MP |
Overall Height (cm) | 20.6 |
Overall Height (mm) | 206 |
Overall Length (cm) | 22.8 |
Overall Length (mm) | 228 |
Overall Width (cm) | 8.9 |
Overall Width (mm) | 89 |
Product Type | Spray Gun |
Purge Method | Liquid |
Series | Specialty |
Sound Power Level (dB(A)) | 79.9 |
Sound Pressure Level (dB(A)) | 70 |
Spray Gun Mix Type | Static Mix |
Trigger Lock | Locking |
Trigger Type | Two-Finger |
Type | Spray Gun |
Wetted Parts | Aluminum, Stainless Steel, Carbon Steel, Chemically Resistant O-Rings, UHMWPE, Polycarballoy, Nylon |
