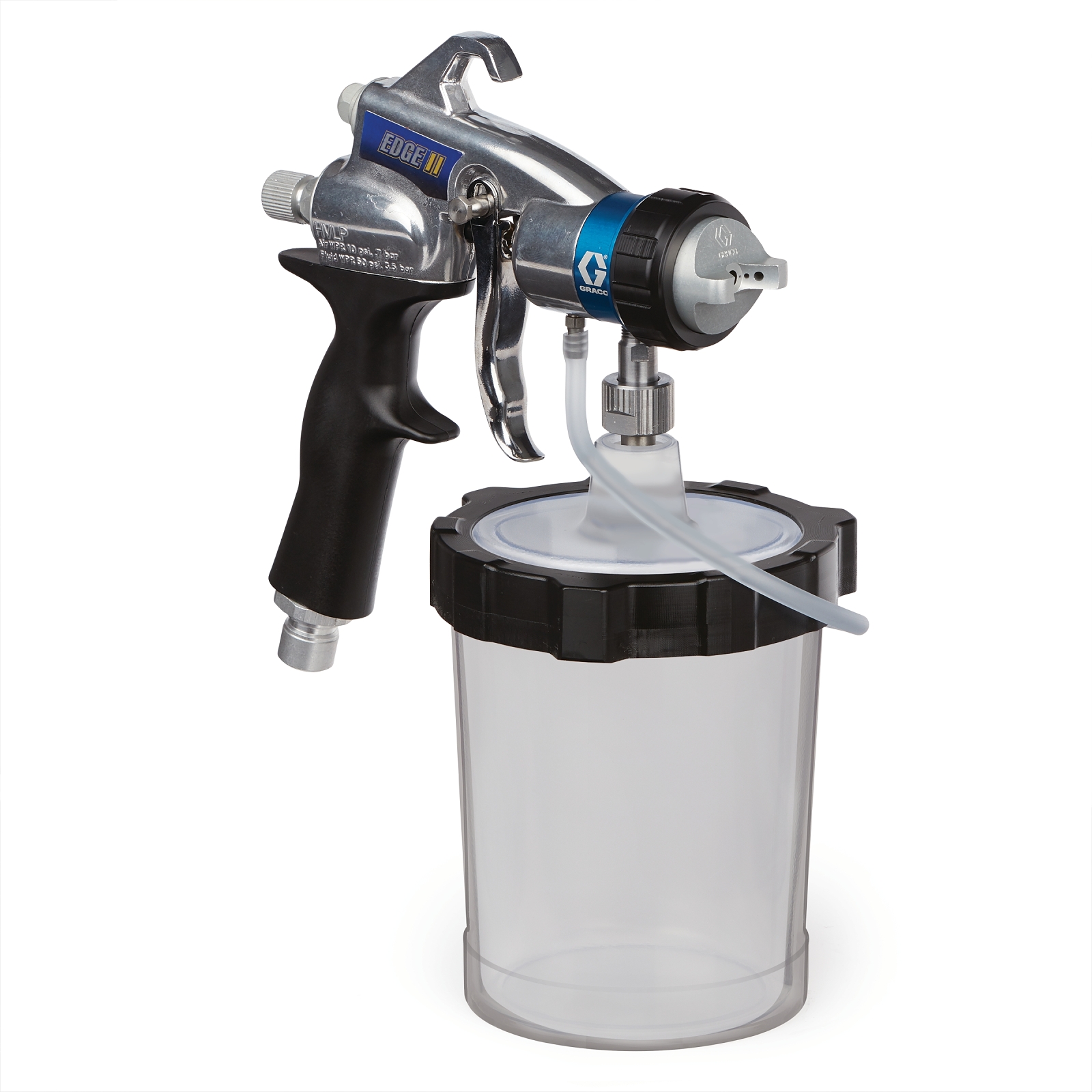

HVLP EDGE II
EDGE II Gun with FlexLiner System
Part Number: 17P481
HVLP EDGE II
EDGE II Gun with FlexLiner System
Part Number: 17P481
Maximize your spraying performance with the innovative HVLP EDGE II Gun. Cutting edge technology such as intuitive gun controls, Quick Release fluid set, and optimized air pressure and airflow will help you achieve the highest quality finish available in fine finish spraying.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Maximize your spraying performance with the innovative HVLP EDGE II Gun. Cutting edge technology such as intuitive gun controls, Quick Release fluid set, and optimized air pressure and airflow will help you achieve the highest quality finish available in fine finish spraying.
- Integrated Flow Control
- Combines material and air flow into one simple control
- Optimized to spray the majority of fine finish applications
- Quick adjustment with 360° rotation and indicator for repeatable spray setting
- Adjustable Air Cap
- 3-position rotation to change spray pattern
- Conveniently located at the front of the gun
- Allows more air pressure into the material cup to spray heavier material
- Easily clean and reuse versus replace
- Located by gun to reduce clogged valves due to paint contamination
- EasyGlide 2-Finger Trigger and Ergonomic Handle
- Trigger has up to 75% lighter pull than competition
- 2-finger trigger design gives more control while spraying
- Form-fitted handle stays cool to the touch for extended use
- Quick Release Needle Design
- Change out needles from the front of the gun with just a click
- Easy to change, easy to clean with no tools needed
- Remove front air cap and nozzle
- Slide trigger lever to release needle
- Pull needle out
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Varnish, Enamel, Latex, Stains |
|---|---|
| For Use With | FinishPro HVLP Sprayers |
| Gun Activation | Manual |
| Gun Type | HVLP Gun |
| Gun Weight (oz) | 20 |

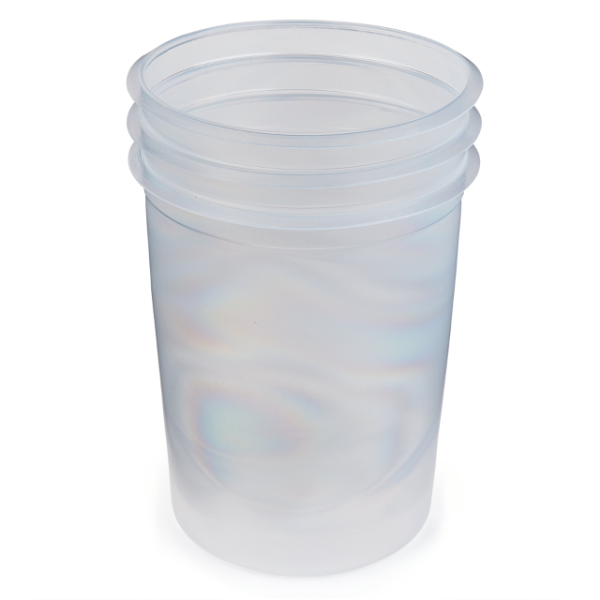

| Includes | 1 qt FlexLiner Cup, #3 Quick Release Fluid Set |
| Maximum Air Inlet Pressure (MPa) | 0.07 |
| Maximum Air Inlet Pressure (psi) | 10 |
| Maximum Air Pressure (MPa) | 0.07 |
| Maximum Air Pressure (psi) | 10 |
| Maximum Fluid Pressure (MPa) | 0.35 |
| Maximum Fluid Pressure (psi) | 50 |
| Model | HVLP |
| Series | EDGE II |
| Sound Power Level (dB(A)) | 65.0 |
| Sound Pressure Level (dB(A)) | 65 |
| Spray Type | HVLP |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Compatible Material | Varnish, Enamel, Latex, Stains |
| For Use With | FinishPro HVLP Sprayers |
| Gun Activation | Manual |
| Gun Type | HVLP Gun |
| Gun Weight (oz) | 20 |
| Includes | 1 qt FlexLiner Cup, #3 Quick Release Fluid Set |
| Maximum Air Inlet Pressure (MPa) | 0.07 |
| Maximum Air Inlet Pressure (bar) | 0.7 |
| Maximum Air Inlet Pressure (kPa) | 70 |
| Maximum Air Inlet Pressure (psi) | 10 |
| Maximum Air Pressure (MPa) | 0.07 |
| Maximum Air Pressure (bar) | 0.7 |
| Maximum Air Pressure (kPa) | 70 |
| Maximum Air Pressure (psi) | 10 |
| Maximum Fluid Pressure (MPa) | 0.35 |
| Maximum Fluid Pressure (bar) | 3.5 |
| Maximum Fluid Pressure (kPa) | 350 |
| Maximum Fluid Pressure (psi) | 50 |
| Model | HVLP |
| Series | EDGE II |
| Sound Power Level (dB(A)) | 65.0 |
| Sound Pressure Level (dB(A)) | 65 |
| Spray Type | HVLP |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
