FinishPro 9.0

FinishPro HVLP 9.0 ProContractor Series Sprayer

Part Number: 17N266

FinishPro 9.0

FinishPro HVLP 9.0 ProContractor Series Sprayer

Part Number: 17N266

The FinishPro HVLP 9.0 ProContractor Series sprayer is loaded with features that provide on-demand power control and easier operation with independent material, air and spray fan controls to increase productivity on small to medium-sized fine finish jobs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The FinishPro HVLP 9.0 ProContractor Series sprayer is loaded with features that provide on-demand power control and easier operation with independent material, air and spray fan controls to increase productivity on small to medium-sized fine finish jobs.

Work Smarter, Finish More Jobs. Graco HVLP ProContractor Series sprayers include all Standard Series features plus additional features that offer the longest life, more convenience and greater control to improve profitability and produce a superior spray finish.

  • TurboForce Technology
    • Exclusive, proprietary turbine design builds more pressure through each stage, resulting in more performance at the gun
    • More air flow and air pressure means higher production with less thinning of material
    • Generates less heat and provides longer turbine life
  • SmartStart Turbine
    • Automatically shuts off when not in use— if you’re not spraying, it’s not running
    • Reduces jobsite noise, resulting in less fatigue
    • Automatic shut-off reduces heat and extends turbine life
  • TurboControl System with LED Display
    • Adjust the TurboForce turbine speed to match the performance you require
    • Reduces heat build up
    • Runs quieter
    • Extends turbine system life
    • 50% longer hoses
  • Industry Leading Dual Filtration System
    • Automotive-grade filter has high performance filtration
    • Outperforms foam and traditional paper filters used on most HVLP systems
  • EDGE II Plus Gun
    • Ultimate control with independent user controls for material volume, air flow, and spray fan size
    • 4X more productivity
    • FlexLiner Bag System
    • Learn more: EDGE II Plus Gun
  • FlexLiner Bag System
    • FlexLiner Paint Bag System replaces traditional material cups
    • Spray at any angle with no adjustment – even upside down!
  • Super-Flex Air Hose
    • 15% lighter weight than other leading brands for more control at the gun
    • 30 ft length included
    • No tools needed to connect
  • Stainless Steel “Tough Box” Design
    • Rugged, all steel enclosure protects the turbine on the job and during transport
    • Smaller and lighter than previous models
  • Utility Toolbox
    • Separate tool storage for extra needles and nozzles
  • On-Board Gun and Cup Holder
    • Holds gun when not in use
    • Allows for easy paint refills with less spills

Specifications & Documents

Technical Specifications

Convert to Metric
Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane
Gun Included 1
Includes EDGE II Plus Gun, 32 oz FlexLiner System, #3 Quick-Release Fluid Set, #4 Quick-Release Fluid Set, 30 ft Super-Flex Air Hose, Automotive Main Filter
Maximum Air Inlet Pressure (psi) 9
Maximum Hose Length (ft) 60
Maximum Working Pressure (psi) 10
Model FinishPro
Product Series ProContractor
Product Type Spray Package
Recommended Annual Usage Up to 50 gallons per year
Series 9.0
Spray Gun Type EDGE II Plus Gun
Spray Type Air-Powered
Sprayer Type HVLP
Technology Type HVLP
Type Air-Powered Sprayer
Weight (lb) 24
Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane
Gun Included 1
Includes EDGE II Plus Gun, 32 oz FlexLiner System, #3 Quick-Release Fluid Set, #4 Quick-Release Fluid Set, 30 ft Super-Flex Air Hose, Automotive Main Filter
Maximum Air Inlet Pressure (bar) 1
Maximum Air Inlet Pressure (kPa) 10
Maximum Air Inlet Pressure (psi) 9
Maximum Hose Length (m) 18.0
Maximum Working Pressure (bar) 0.7
Maximum Working Pressure (kPa) 70
Maximum Working Pressure (psi) 10
Model FinishPro
Product Series ProContractor
Product Type Spray Package
Recommended Annual Usage Up to 50 gallons per year
Series 9.0
Spray Gun Type EDGE II Plus Gun
Spray Type Air-Powered
Sprayer Type HVLP
Technology Type HVLP
Type Air-Powered Sprayer
Weight (kg) 10.9

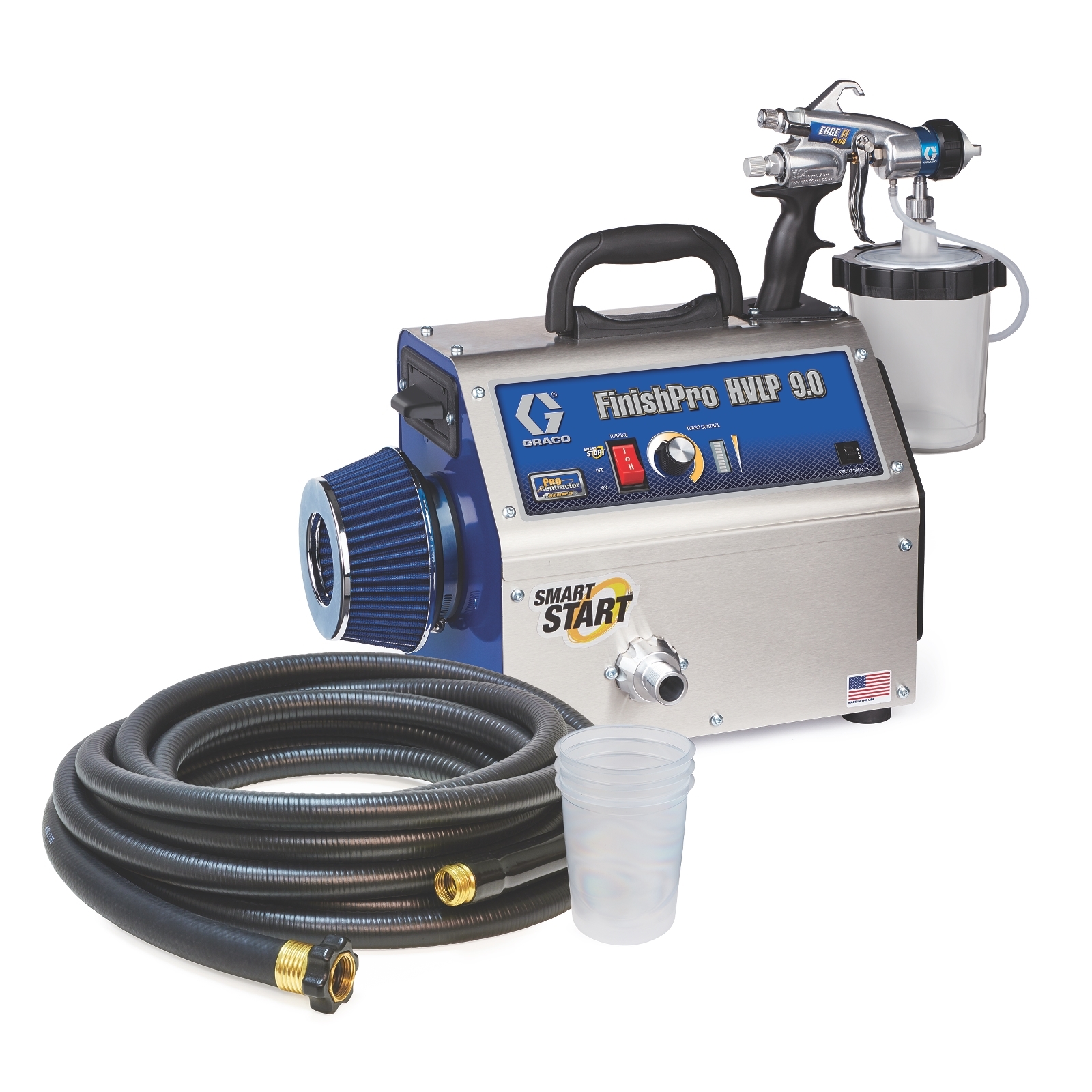

What's Included

Part No. Description Qty Unit
17P483 EDGE II Plus Gun with FlexLiner System 1 ea
257159 SuperFlex Air Hose, 30 ft 1 ea
17R298 KIT, FILTER, FINISHPRO, HVLP, PRO 1 ea

Repair Parts

Part No. Description
15W126 CORD SET, USA, 6FT, 15 AMP, 120V
17R944 KIT, CONTROL BOARD, PRO, 120V
17R948 KIT, REPAIR, POTENTIOMETER, PRO
129590 SWITCH, POWER, HVLP, PRO
