FinishPro 7.0

FinishPro HVLP 7.0 Standard Series Sprayer

Part Number: 17N263

product image product image

FinishPro 7.0

FinishPro HVLP 7.0 Standard Series Sprayer

Part Number: 17N263

The FinishPro HVLP 7.0 Standard Series sprayer provides quiet, adjustable turbine power with exclusive TurboForce Technology and greater control with the EDGE II gun to deliver superior performance and a professional fine finish on smaller jobs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The FinishPro HVLP 7.0 Standard Series sprayer provides quiet, adjustable turbine power with exclusive TurboForce Technology and greater control with the EDGE II gun to deliver superior performance and a professional fine finish on smaller jobs.

Everyday Reliability. Graco HVLP Standard Series sprayers are one of the coolest running, longest life HVLP sprayers on the market and include only the essential features you need to deliver simplified flow control and easy operation.

  • TurboForce Technology
    • Exclusive, proprietary turbine design builds more pressure through each stage, resulting in more performance at the gun
    • More air flow and air pressure means higher production with less thinning of material
    • Generates less heat and provides longer turbine life
  • Turbo Control System
    • Adjust the TurboForce turbine speed to match the performance you require
    • Reduces heat build up
    • Runs quieter
    • Extends turbine system life
  • Standard Filtration System
    • Washable filter extends motor life and ensures a quality finish
    • No tools required to remove
    • Out performs foam filters commonly used on other HVLP sprayers
  • EDGE II Gun
    • Patented Single User Control combines air flow into one simple control
    • 4X more productivity
    • FlexLiner Bag System
    • Learn more: EDGE II Gun
  • FlexLiner Bag System
    • FlexLiner Paint Bag System replaces traditional material cups
    • Spray at any angle with no adjustment – even upside down!

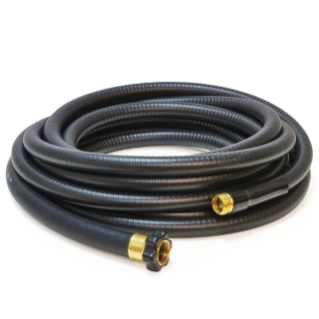

  • Super-Flex Air Hose
    • 15% lighter weight than other leading brands for more control at the gun
    • 20 ft length included
    • No tools needed to connect
  • Stainless Steel “Tough Box” Design
    • Rugged, all steel enclosure protects the turbine on the job and during transport
    • Smaller and lighter than previous models

Specifications & Documents

Technical Specifications

Convert to Metric
Amperage (A) 11.0
Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane
Gun Included 1
Includes EDGE II Gun, 32 oz FlexLiner System, #3 Quick-Release Fluid Set, 20 ft Super-Flex Air Hose, Foam Filter
Maximum Air Inlet Pressure (psi) 7
Maximum Hose Length (ft) 40
Maximum Working Pressure (psi) 10
Model FinishPro
Pressure Type Low Pressure
Product Series Standard
Product Type Spray Package
Recommended Annual Usage Up to 50 gallons per year
Series 7.0
Spray Gun Type EDGE II Gun
Spray Type Air-Powered
Sprayer Type HVLP
Technology Type HVLP
Type Air-Powered Sprayer
Weight (lb) 18
Amperage (A) 11.0
Construction Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane
Gun Included 1
Includes EDGE II Gun, 32 oz FlexLiner System, #3 Quick-Release Fluid Set, 20 ft Super-Flex Air Hose, Foam Filter
Maximum Air Inlet Pressure (bar) 0
Maximum Air Inlet Pressure (kPa) 0
Maximum Air Inlet Pressure (psi) 7
Maximum Hose Length (m) 12.0
Maximum Working Pressure (bar) 0.7
Maximum Working Pressure (kPa) 70
Maximum Working Pressure (psi) 10
Model FinishPro
Pressure Type Low Pressure
Product Series Standard
Product Type Spray Package
Recommended Annual Usage Up to 50 gallons per year
Series 7.0
Spray Gun Type EDGE II Gun
Spray Type Air-Powered
Sprayer Type HVLP
Technology Type HVLP
Type Air-Powered Sprayer
Weight (kg) 8.2

What's Included

Part No. Description Qty Unit
17P481 EDGE II Gun with FlexLiner System 1 ea
17R300 KIT, ACCESSORY, 20' HOSE, AIR 1 ea
17R296 KIT, FILTER, FINISHPRO, HVLP, STD 1 ea

Repair Parts

Part No. Description
15W126 CORD SET, USA, 6FT, 15 AMP, 120V
17P481 EDGE II Gun with FlexLiner System
17R942 KIT, CONTROL BOARD, STD, 120V
17R946 KIT, REPAIR, POTENTIOMETER, STD
120660 SWITCH, POWER
