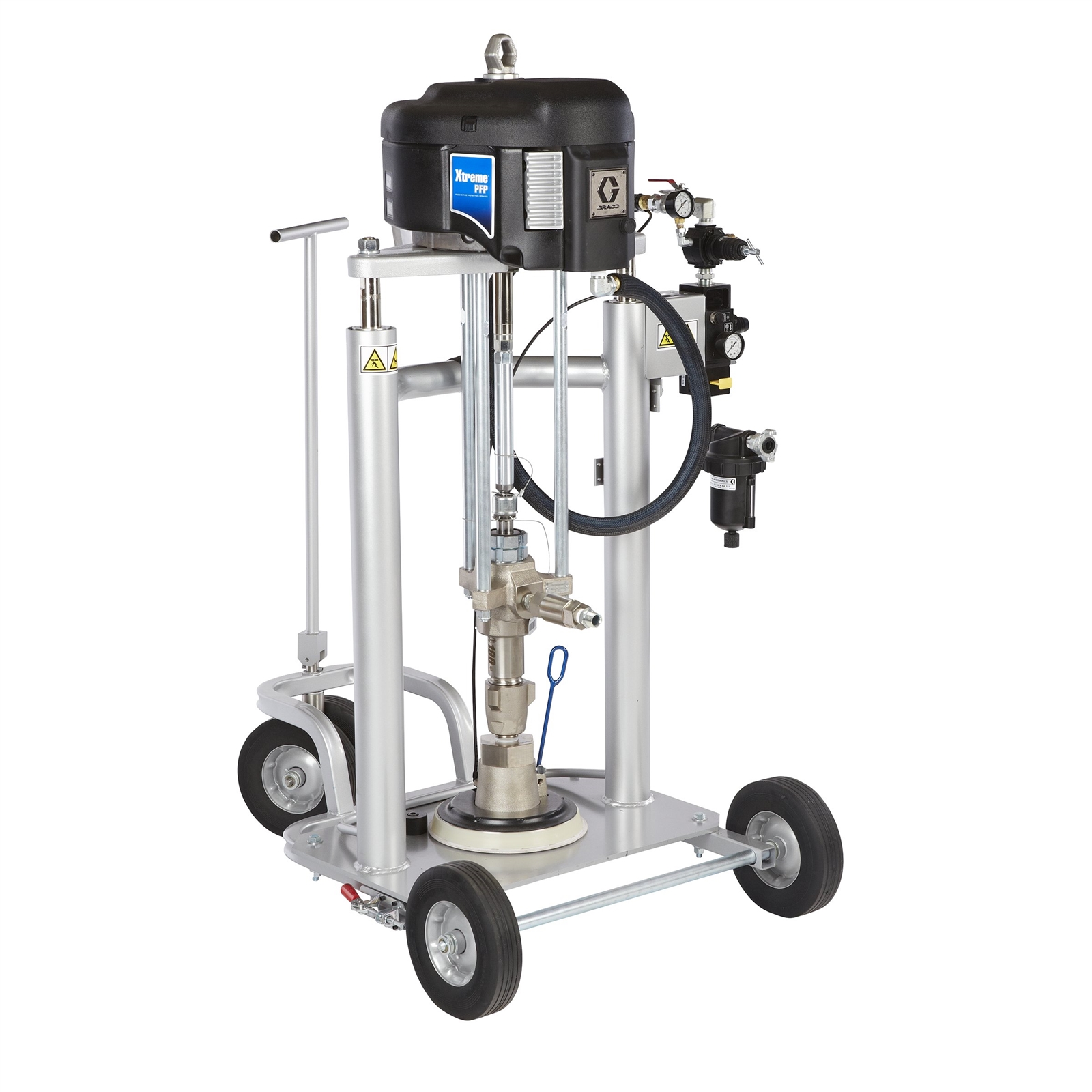

King PFP XL70-180 Cart-Mounted Single-Component Sprayer with 75 ft (23 m) Spray Line, XHF Gun, and 429 Tip
Part Number: 16T311
King PFP
King PFP XL70-180 Cart-Mounted Single-Component Sprayer with 75 ft (23 m) Spray Line, XHF Gun, and 429 Tip
Part Number: 16T311
Affordable option for PFP touch-up projects. Get in and get smaller jobs done fast. Ideal for spraying hot-potted fireproofing materials, the Xtreme PFP Sprayer is easy to use and easy to clean.
Features
Product Brochure
Affordable option for PFP touch-up projects. Get in and get smaller jobs done fast. Ideal for spraying hot-potted fireproofing materials, the Xtreme PFP Sprayer is easy to use and easy to clean.
For spraying hand-mixed epoxy intumescent fireproofing coatings.
- Handles high-viscosity coatings
- Excellent alternative to troweling
- Great for small touchup projects or difficult to reach areas
- 5-gal (18.9 liter) dual post ram provides plenty of down force to load your pump
- 180 cc Xtreme lower is designed to handle heavy viscosity material
- Tool-less wiper plate removal – no tools required – easy maintenance
- Rugged, heavy-duty cart – easy for one person to maneuver
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | PFP Epoxy |
|---|---|
| Construction | Alloy Steel, Carbon Steel, Ductile Iron, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, Zinc Plating, Nickel Plating |
| Features | Compact Cart-Mounted, Handles High-Viscosity Coatings, Trusted XL Motor |
| Frame Configuration | Cart |
| Includes | 75 ft Spray Line, XHF Gun with 429 Tip |
| Material Type | Single Component |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 2.93 |
| Maximum Hose Length (ft) | 50 |
| Maximum Sound Pressure Level (dB(A)) | 87 |
| Maximum Working Pressure (MPa) | 50 |
| Maximum Working Pressure (psi) | 7250 |
| Model | King |
| Motor Type | NXT Air Motor |
| Number of Guns | 1 |
| Power Source | Electric |
| Pump Type | Air-Assisted |
| Series | PFP |
| Type | Air-Assisted Airless Sprayer |
| Weight (lb) | 392 |
| Compatible Material | PFP Epoxy |
| Construction | Alloy Steel, Carbon Steel, Ductile Iron, Leather, Nylon, PTFE, Stainless Steel, Tungsten Carbide, Zinc Plating, Nickel Plating |
| Features | Compact Cart-Mounted, Handles High-Viscosity Coatings, Trusted XL Motor |
| Frame Configuration | Cart |
| Includes | 75 ft Spray Line, XHF Gun with 429 Tip |
| Material Type | Single Component |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Hose Length (m) | 15.25 |
| Maximum Sound Pressure Level (dB(A)) | 87 |
| Maximum Working Pressure (MPa) | 50 |
| Maximum Working Pressure (bar) | 500 |
| Maximum Working Pressure (kPa) | 50000 |
| Maximum Working Pressure (psi) | 7250 |
| Model | King |
| Motor Type | NXT Air Motor |
| Number of Guns | 1 |
| Power Source | Electric |
| Pump Type | Air-Assisted |
| Series | PFP |
| Type | Air-Assisted Airless Sprayer |
| Weight (kg) | 178 |
