Trabon

Proximity Switch, M11 x 1, 350 bar (5075 psi)

Part Number: 17L879

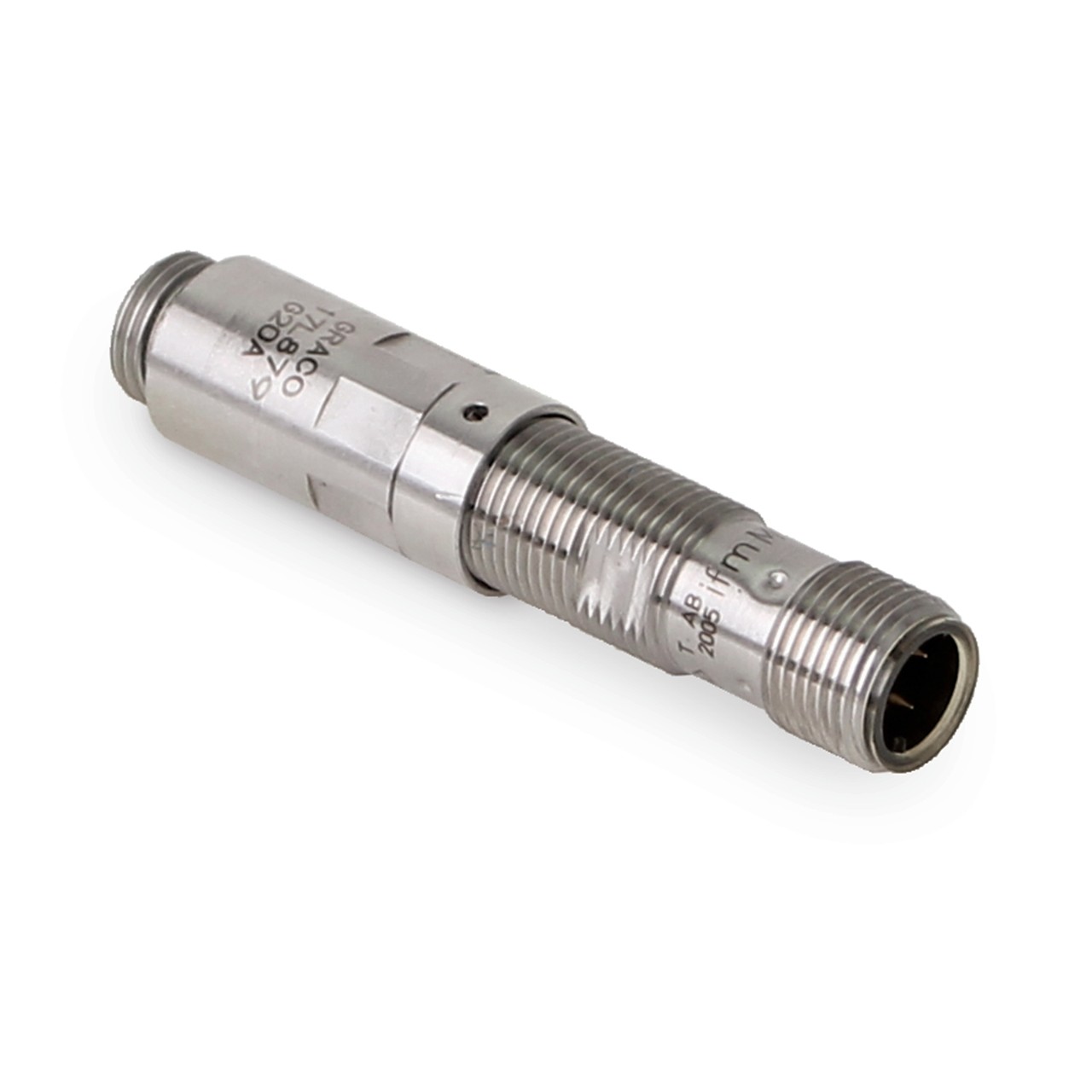

product image
Image is for illustrative purposes only.

Trabon

Proximity Switch, M11 x 1, 350 bar (5075 psi)

Part Number: 17L879

Magnetically-operated sensing devices for sending system data to the controller or PLC.

Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure

Magnetically-operated sensing devices for sending system data to the controller or PLC.

  • Available in 115 VAC or 12-32 VDC
  • Available for all series progressive families to provide cycle rates up to 200 CPM
  • Pressure ratings up to 690 bar (10,000 psi)
  • Variety of electrical connections and voltages with or without LED indication
  • Select models available with UL and CSA approvals

Specifications & Documents

Technical Specifications

Convert to Imperial
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Oil, Grease
Material PBT (Pocan), PC (Makrolon), FPM, Stainless Steel
Maximum Voltage (V dc) 32
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (psi) 5075
Minimum Voltage (V dc) 9.6
Model Trabon
Power Connection Type M12
Type Field-Sensing Magnetic
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Oil, Grease
Material PBT (Pocan), PC (Makrolon), FPM, Stainless Steel
Maximum Voltage (V dc) 32
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (bar) 350
Maximum Working Pressure (kPa) 35000
Maximum Working Pressure (psi) 5075
Minimum Voltage (V dc) 9.6
Model Trabon
Power Connection Type M12
Type Field-Sensing Magnetic
