GX FF Cordless
GX FF cordless airless sprayer, 230V, CEE
Part Number: 25U466
GX FF Cordless
GX FF cordless airless sprayer, 230V, CEE
Part Number: 25U466
The GXFF cordless is a battery-operated finisher built for the fine finish contractor looking for ultimate portability and freedom. Designed to deliver all the performance and features of a corded GXFF sprayer along with freedom from power cords, electrical outlets or generators. Experience the powe...
More Info
Features
The GXFF cordless is a battery-operated finisher built for the fine finish contractor looking for ultimate portability and freedom. Designed to deliver all the performance and features of a corded GXFF sprayer along with freedom from power cords, electrical outlets or generators. Experience the power and freedom to spray every job faster.
Enjoy the convenience of being able to go to any job, set the sprayer down and start spraying whether there is power available or not. The comfortable Contractor PC compact gun will let you spray in the tightest areas with ease
- ULTIMATE POWER AND PROVEN PERFORMANCE
Powered by DEWALTВ®- High capacity 6ah FlexVolt batteries spray up to 23 litres before charging is required

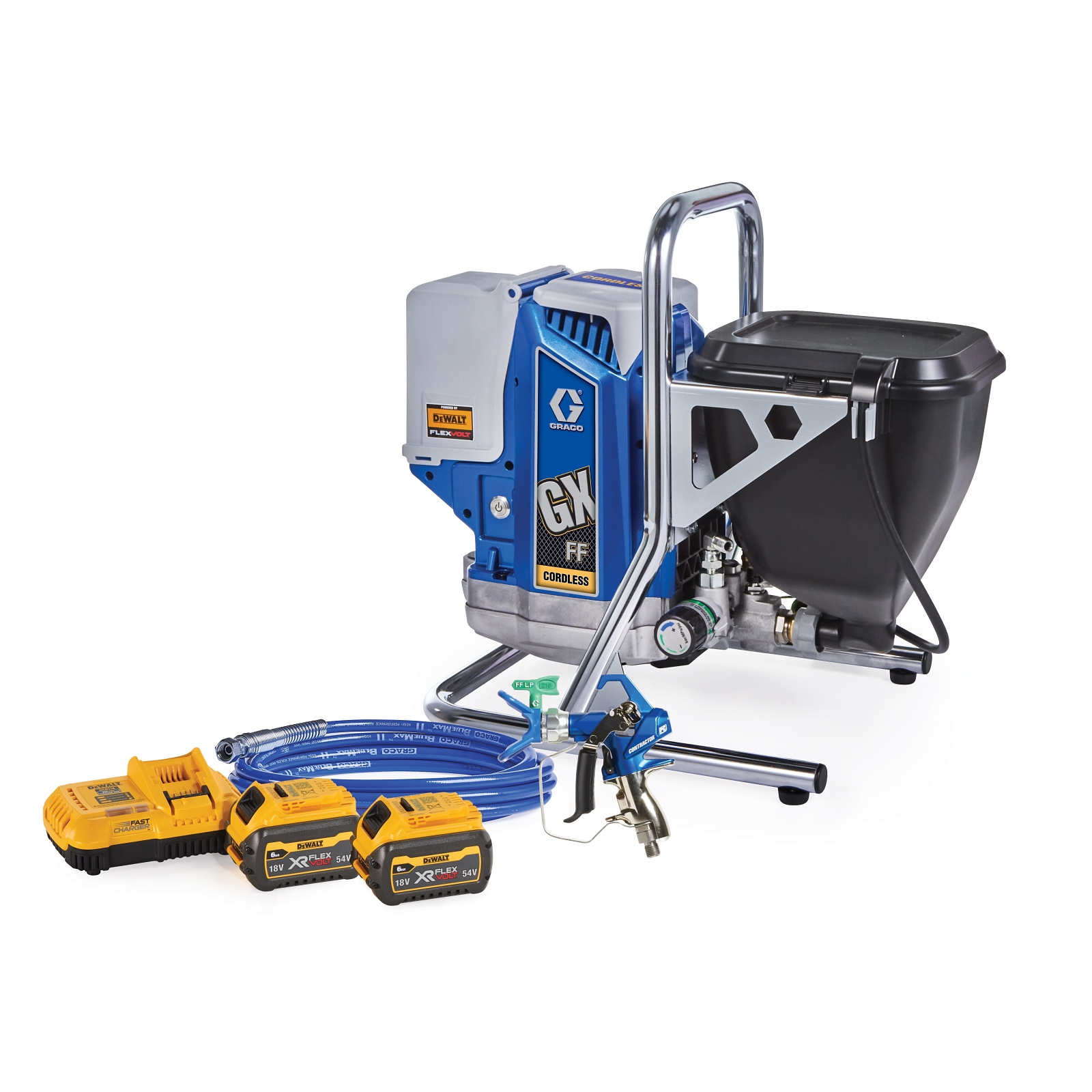

- Delivered complete with two batteries and a fan-cooled fast charger
- Allows you to spray a full day of fine finish projects
- Brushless DC motor
- The powerful brushless DC motor provides extended battery run time
- The lightweight, compact design allows for increased portability
- PERFECT AIRLESS FINISH
RAC X™ Fine finish low pressure (FFLP) switchtip™- Perfect airless finish
- Easiest pattern overlap
- Up to 2X the tip life of standard tips
- SPRAY IN THE TIGHTEST AREAS WITH EASE
Contractor PC compact™ gun
- Smallest most light weight gun on the market
- A 50% lighter trigger pull
- The ProConnect cartridge allows you to rebuild the gun in seconds
- EASY MAINTENANCE AND LONG LIFE
ProX power-piston pump featuring ProXChange- Small deadband pressure ensures the finest finish possible
- Exceptional durability and long life piston pump
- Exclusive lifetime lubricated wiper pad for maintenance free operation
- Modular pump components for easy maintenance
- Fast and easy on-the-job pump replacement—no tools needed
- Eliminate labor costs and down time expenses
- FINISH JOBS FASTER
Extremely portable- Lighter than any competitive system
- The easy carry handle makes transportation easy
- The lid prevents splashes and spills while carrying
- EASY MATERIAL HANDLING
5.7 litre hopper
- Ideal for spraying small amounts of material
- Faster clean-up with a smooth inside surface - solvent resistant
- Never mess with a drain line again — the drain line hook keeps the drain tube in place
Specifications & Documents
Technical Specifications
Convert to Imperial| Battery Capacity (Ah) | 6 |
|---|---|
| Battery Chemistry | Lithium-ion |
| Battery Voltage (V) | 54 |
| Compatible Material | Stains, Varnish, Enamel, Solventborne Paints |
| Compatible Replacement Pump | 24Y472 |
| Convertible | Non-Convertible |
| Engine Size (HP) | 0.500 |
| Filter Mesh Size | 100 |
| Fluid Hose Inside Diameter (in) | 3/16 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hopper |
| Frequency (Hz) | 50 |
| Gun Included | 1 |
| Hose Diameter (in) | 3/16 |
| Hose Inlet Diameter (in) | 3/16 |
| Maximum Flow Rate (GPM) | 0.38 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (ft) | 25 |
| Maximum Operating Temperature (°F) | 115 |
| Maximum Sound Pressure Level (dB(A)) | 83 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Tip Size 1 Gun (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Operating Temperature (°F) | 40 |
| Model | GX |
| Motor Type | Brushless DC |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 19.6 |
| Overall Length (in) | 20.2 |
| Overall Width (in) | 13.5 |
| Phase | 1 |
| Power Source | Battery-Powered |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Carbon Steel |
| Pump Type | ProX Piston Pump |
| Series | FF Cordless |
| Spray Gun Type | Contractor PC Compact |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (lb) | 32.5 |
| Wetted Material | Stainless Steel, Brass, Leather, UHMWPE, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer |
| Battery Capacity (Ah) | 6 |
| Battery Chemistry | Lithium-ion |
| Battery Voltage (V) | 54 |
| Compatible Material | Stains, Varnish, Enamel, Solventborne Paints |
| Compatible Replacement Pump | 24Y472 |
| Convertible | Non-Convertible |
| Filter Mesh Size | 100 |
| Fluid Hose Inside Diameter (in) | 3/16 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hopper |
| Frequency (Hz) | 50 |
| Gun Included | 1 |
| Hose Diameter (in) | 3/16 |
| Hose Inlet Diameter (cm) | 0.47625 |
| Hose Inlet Diameter (in) | 3/16 |
| Hose Inlet Diameter (mm) | 4.7625 |
| Maximum Flow Rate (L/min) | 1.4 |
| Maximum Fluid Working Pressure (psi) | 3000 |
| Maximum Hose Length (m) | 7.5 |
| Maximum Operating Temperature (°C) | 46 |
| Maximum Sound Pressure Level (dB(A)) | 83 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Tip Size 1 Gun (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (kg/cm²) | 210.9 |
| Maximum Working Pressure (psi) | 3000 |
| Minimum Operating Temperature (°C) | 4 |
| Model | GX |
| Motor Type | Brushless DC |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 49.8 |
| Overall Height (mm) | 497.8400 |
| Overall Length (cm) | 51.3 |
| Overall Length (mm) | 513.08 |
| Overall Width (cm) | 34.3 |
| Overall Width (mm) | 342.9000 |
| Phase | 1 |
| Power Source | Battery-Powered |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Carbon Steel |
| Pump Type | ProX Piston Pump |
| Region plug type | EU region (type C, E & F plug) |
| Series | FF Cordless |
| Spray Gun Type | Contractor PC Compact |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (kg) | 14.7 |
| Wetted Material | Stainless Steel, Brass, Leather, UHMWPE, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer |
Product Manuals
3A8429B, GX19, GX FF, GX21 Cordless Electric Airless Sprayers, Operation, Parts, English
(237 KB)
(English Only)
