Ultra Corded

Ultra Corded Handheld Airless Sprayer, 230V

Part Number: 17M360

product image

Ultra Corded

Ultra Corded Handheld Airless Sprayer, 230V

Part Number: 17M360

Pros agree. Airless handheld sprayers are the essential tool for turning small jobs around quickly. Industry-tested Graco Ultra handhelds are the most advanced in the world, delivering unbeatable speed, flawless finish, and unmatched reliability.
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Product Brochure
Pros agree. Airless handheld sprayers are the essential tool for turning small jobs around quickly. Industry-tested Graco Ultra handhelds are the most advanced in the world, delivering unbeatable speed, flawless finish, and unmatched reliability.

Ultra airless handheld sprayers are designed specifically for small interior, exterior and specialty projects with extreme portability and the ability to spray in seconds. Easily spray those small jobs without having to start-up your larger airless sprayer.

  • Triax Triple Piston Pump
    • Durable carbide piston built to deliver extended reliability and full tip support
    • The most durable, lightest weight pump
    • Fast, on-the-job pump replacement with ProConnect
  • ProConnect
    • On-The-Job Pump Replacement System
    • One Tool Replacement - Replace the pump in 3 steps using only a screwdriver
  • SmartControl
    • Spray at any hand speed with professional finish every time
    • Precision pressure control delivers a consistent spray fan without pressure fluctuations
  • ProControl II
    • Adjust motor speed to spray at any speed the job demands
    • More control to deliver a professional finish – every job, every time

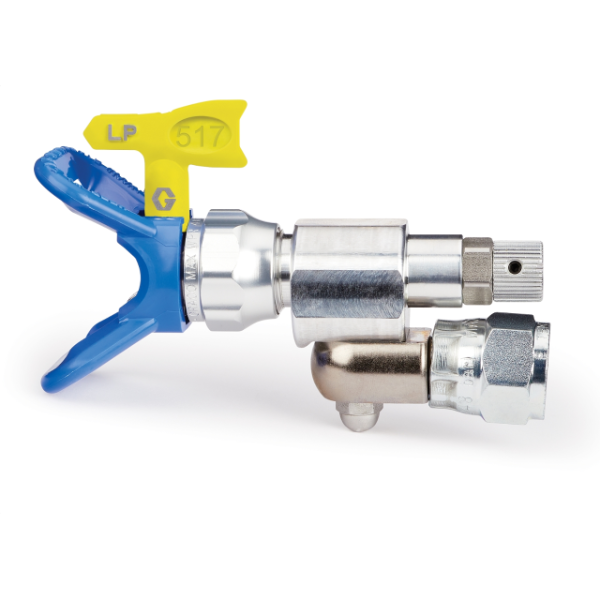

  • RAC X FF LP Tips
    • Provides superior finish at low pressure
    • Reverse-A-Clean (RAC) SwitchTips make cleaning tip clogs simple
    • Large range of sizes available to meet the job requirements
    • Works on all Graco Airless Sprayers – handhelds to large airless
  • 1 litre FlexLiner Paint Bags
    • Fast clean-up with disposable liners and no suction tube to clean
    • Easy Setup

Specifications & Documents

Technical Specifications

Convert to Imperial
Compatible Material Paint
Compatible Tip Size (in) 0.016
Frame Configuration Handheld
Includes RAC X FFLP 410, RAC X FFLP 514
Maximum Fluid Working Pressure (psi) 2000
Maximum Sound Pressure Level (dB(A)) 88
Maximum Tip Size (in) 0.016
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (psi) 13800
Model Ultra
Motor Type AC
Overall Height (in) 10.5
Overall Length (in) 18
Overall Width (in) 5
Power Cord Length (ft) 9.8
Power Cord Length (in) 117.6
Power Source Electric
Pressure Control Type SmartControl
Pump Type Triax Triple Piston
Series Corded
Type Handheld Corded Airless Sprayer
Voltage (V) 230
Weight (lb) 4.6
Compatible Material Paint
Compatible Tip Size (in) 0.016
Frame Configuration Handheld
Includes RAC X FFLP 410, RAC X FFLP 514
Maximum Fluid Working Pressure (psi) 2000
Maximum Sound Pressure Level (dB(A)) 88
Maximum Tip Size (in) 0.016
Maximum Working Pressure (MPa) 14
Maximum Working Pressure (bar) 138
Maximum Working Pressure (kPa) 13800
Maximum Working Pressure (kg/cm²) 13.8
Maximum Working Pressure (psi) 13800
Model Ultra
Motor Type AC
Overall Height (cm) 26.7
Overall Height (mm) 267.0
Overall Length (cm) 36
Overall Length (mm) 356
Overall Width (cm) 12.7
Overall Width (mm) 127
Power Cord Length (cm) 298.7
Power Cord Length (mm) 2987
Power Source Electric
Pressure Control Type SmartControl
Pump Type Triax Triple Piston
Region plug type EU region (type C, E & F plug)
Series Corded
Type Handheld Corded Airless Sprayer
Voltage (V) 230
Weight (kg) 2.1

Repair Parts

Part No. Description
17P099 KIT, AC MOTOR
17P174 KIT, CLEANSHOT, METAL
17P098 KIT, PRIME VALVE
17P176 KIT, SMART CONTROL, 120V, AC, BLU
17P550 FlexLiner System 1 litre
