Large EV Manufacturer Boosts Production Flexibility
Customised system adds flexibility to electric vehicle (EV) battery production process.
Background
A large electric vehicle manufacturer needed a system to automatically fill and degas the potting material in the electric junction boxes of their EV charging stations. Graco had supplied their previous system, so they came to us for a solution.
The Challenge
To keep pace with changes in the EV production sector, the manufacturer needed to revise the design of the system we originally supplied and required numerous new components—some with long lead times. To address these challenges, we collaborated with our customer to create new, custom components.
Our Approach
To execute this project and meet the customer’s timetable, we needed to swiftly design and build a new system that could be integrated into their production lines. Three parts of their auto degas system - the degassing hardware, the recirculation units and the control panel, required special engineering to get to a solution. Our partnership produced an innovative system that met our customer’s production requirements and their schedule.

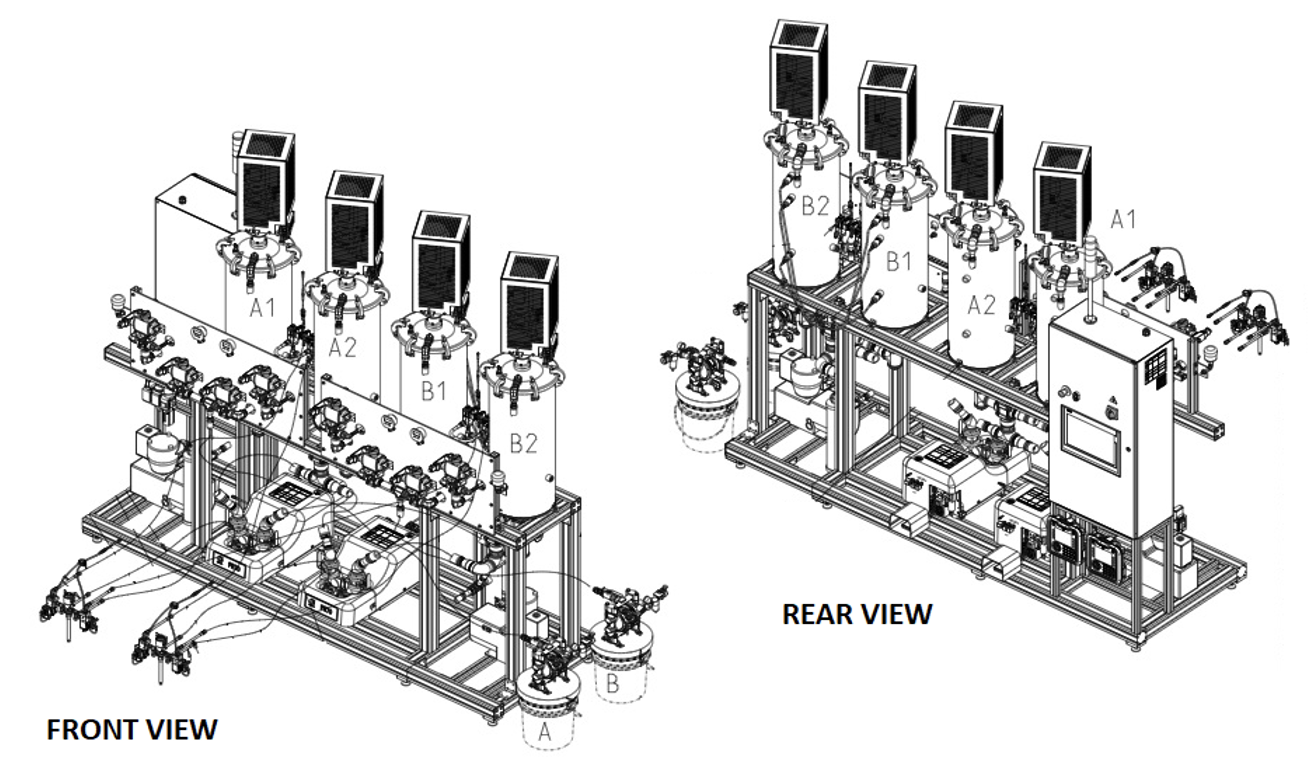

- Dual PR-70F units on a custom extruded aluminium frame.
- Four 75-litre stainless steel tanks.
- Auto degas valve plates.
- Diaphragm pumps for refill.
- Custom control system
System Controls
Our customer specified a Siemens Open PLC (programmable logic controller) for the control system, which runs on Windows. They also specified a 15-inch HMI (human-machine interface). The PLC needed to handle 58 inputs and 40 outputs to control the fill, degas, recirculation and PR-70F functions, as well as the manufacturer’s control interfaces.
HMI Screen
Siemens PLC
Degassing Hardware
Recirculation Units
Degassing Hardware
Each component of the potting material requires two tanks, so while one tank is being used by the PR-70F units, the other can be loaded and degassed. Automatic fill/degas ball valves load the potting material, then pull a vacuum and isolate the tank from the PR-70F during degassing. These valves are mounted on a large plate and the tank outlet valves are positioned under the tanks. All valves have proximity sensors to ensure they’re correctly positioned during the sequence.
Recirculation Units
Both components of the potting material are filled and must be recirculated to prevent these fillers from settling out.
Outcome
Graco’s engineering team partnered with our customer to create a custom Auto Degas solution for their system. We utilised our worldwide network to navigate long lead times for some of the key components needed for this project, allowing us to deliver this system in only 22 weeks, two weeks ahead of schedule.
CONTACT EV BATTERY APPLICATION EXPERTS
We understand the complexity of electric vehicle (EV) battery designs and how material application influences their manufacturability and ability to mitigate thermal runaway events. We look forward to collaborating with you.
"We had to jump through a lot of hoops to make this happen! The engineering team designed the control panel for the degassing hardware from scratch, and we tackled some tough supply chain issues. This project was really a triumph of cooperation with our partners across the globe."
- Mike Bozzelli
