Hem Flange Bond in Automotive Closure Assemblies

Hem Flange Bonding

Hem flange bonding is an application method where adhesive bonds inner and outer panel edges in automotive closure assemblies such as metal bonnets, doors, boot lids or tail gates. Bonding two thinner panels can also offer considerable weight savings over a single, thick panel. The precision of automotive hemming is essential to improve crash safety, prevent corrosion and perfect appearance.


The Automotive Hemming Process

The flanging process happens in the body shop manufacturing process before painting. It begins by securely positioning the inner and outer sheet metal panels. The hemming adhesive is then dispensed on the outer panel, typically in a bead or swirl application, and bent or folded over the inner panel. The adhesive is pressed to spread and fill but not squeeze out of the bond line (between the panels), forming the hem flange bond. This process allows for more noise-resistant, vibration-resistant, impact-resistant car closures.



Panel Adhesive Dispensing

The most critical factor of hem flange bonding is precisely filling the hem between the two panels.  To properly adhere to and seal the panels, epoxy adhesives, often filled with glass beads, are used to create a consistent thickness between the panels. There are two optimal application methods of epoxy adhesives in hem flange bonding: a traditional bead application and a swirl application. Accurate bead size and dispense need to be carefully controlled to secure the bond while maximising adhesive usage.

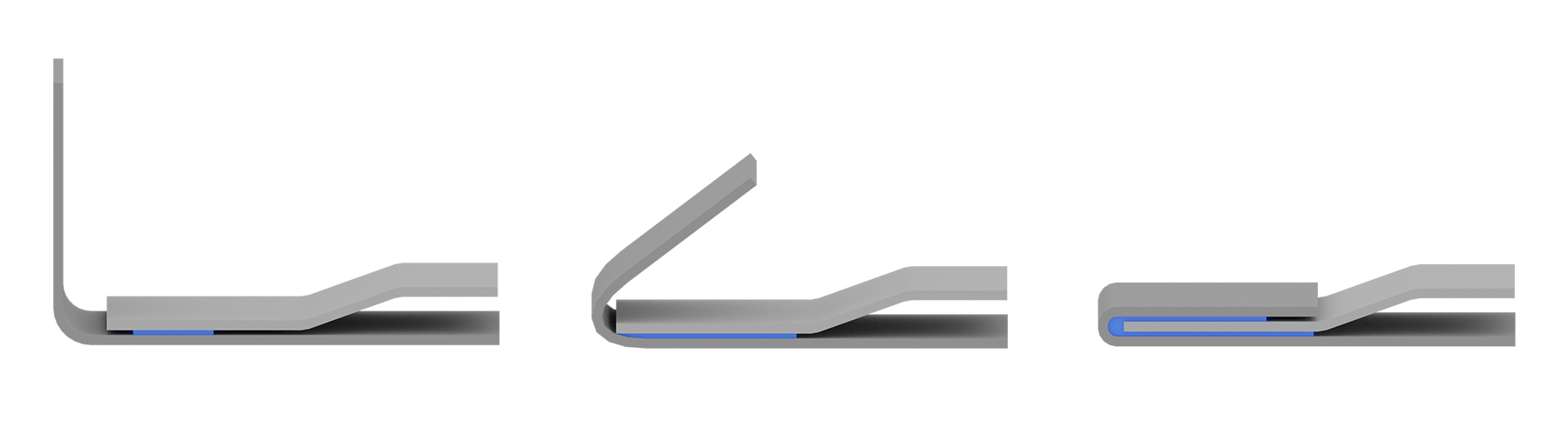

Hem Flange Adhesive Illustration

Challenges of Automotive Hemming

Hem flange bonding can be considered a challenging application in automotive construction. If the sheet metal hem is insufficiently filled or adhesive is not precisely distributed on the inside, the stability of the bond can be compromised. Additionally, if excess hem glue squeezes out, the equipment would be contaminated, causing cleanliness and maintenance issues within the manufacturing plant. It is imperative to have a flexible application solution to execute automotive panel bonding effectively.


Summary

Proper material dispensing and distribution will determine the quality and structural stability of the car body. Graco offers several solutions to perform high-quality sheet metal hemming. Our one component metering systems provide greater control when applying a uniform bead or swirl pattern. We can precisely dispense to your desired bead pattern, width and thickness to meet your application needs while minimising downtime and ultimately reducing the costly rework of parts and maintenance. See our configured one component metering system solutions below:
