Air Driven Expanding Blade Bung-Mounted Agitator, High Viscosity
Part Number: 24C729

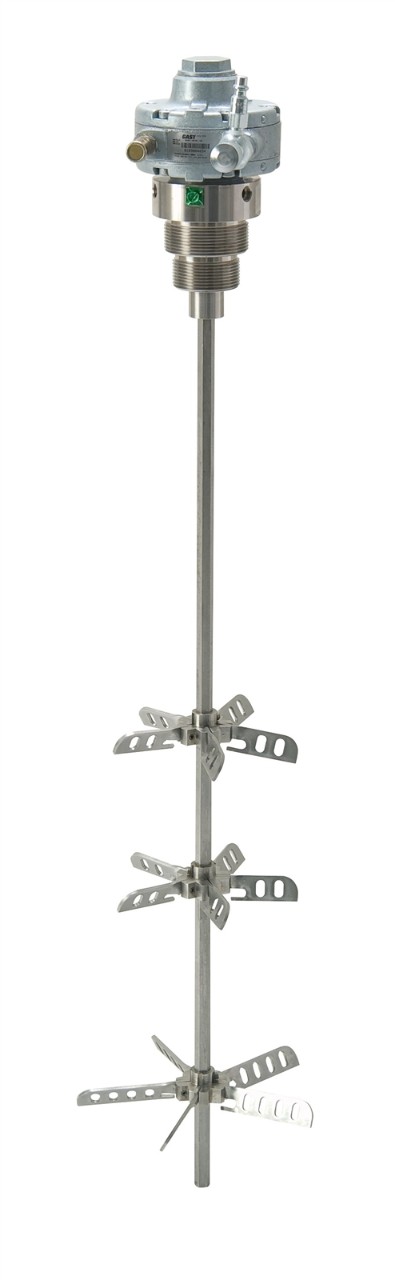

Image is for illustrative purposes only.
Air Driven Expanding Blade Bung-Mounted Agitator, High Viscosity
Part Number: 24C729
High viscosity (2,000 cps) air driven expanding blade bung-mounted agitator
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
High viscosity (2,000 cps) air driven expanding blade bung-mounted agitator
- Corrosion resistant materials increase durability
- Threads into 1.5 or 2-inch drum bung
- Angled adapter reduces vortexing and allows for off-centre mounting
- Customise configuration by adjusting blade height or by adding blade assemblies
- Collapsible blades fit through drum bung and expand when spinning for efficient mixing
- High Viscosity (2,000 cps)
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 1/8 |
|---|---|
| Air Inlet Thread Type | NPT |
| For Use With | Drums with 2 inch Bung |
| Includes | Angled Adapter |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 2000 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Power Rating (HP) | 1.75 |
| Type | Agitator |
| Weight (lb) | 13.1 |
| Wetted Material | Stainless Steel |
| Air Inlet Size (cm) | 0.3175 |
| Air Inlet Size (in) | 1/8 |
| Air Inlet Size (mm) | 3.175 |
| Air Inlet Thread Type | NPT |
| For Use With | Drums with 2 inch Bung |
| Includes | Angled Adapter |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 70 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 2000 |
| Maximum Working Pressure (bar) | 7 |
| Maximum Working Pressure (kPa) | 700 |
| Maximum Working Pressure (psi) | 100 |
| Motor Type | Pneumatic - Rotary Vane |
| Type | Agitator |
| Weight (kg) | 5.94 |
| Wetted Material | Stainless Steel |
Product Manuals
CAD Drawings
24C728-3D-EN.zip
(2 MB)
