GMAX II HD 7900
GMAX II 7900 HD IronMan Series Gas Airless Sprayer
Part Number: 17E843
Available for purchase in: Australia & New Zealand, Japan, Korea, Mainland China, China Hong Kong SAR, China Taiwan
GMAX II HD 7900
GMAX II 7900 HD IronMan Series Gas Airless Sprayer
Part Number: 17E843
Available for purchase in: Australia & New Zealand, Japan, Korea, Mainland China, China Hong Kong SAR, China Taiwan
The Graco GMAX II 7900 HD Ironman airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Level 5 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings.
Features
The Graco GMAX II 7900 HD Ironman airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Level 5 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings.
Beyond Jobsite Tough. GMAX II 7900 HD IronMan Series airless texture sprayers provide superior power & durability to handle the most brutal and demanding conditions typically found on large commercial and industrial job sites.
- Endurance Vortex MaxLife Extreme Piston Pump
- The longest durability & life
- Breakthrough Vortex Rotating Piston Technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Longest life packings and piston rod
- 3X pump rod life
- Maximum versatility no matter what you’re spraying

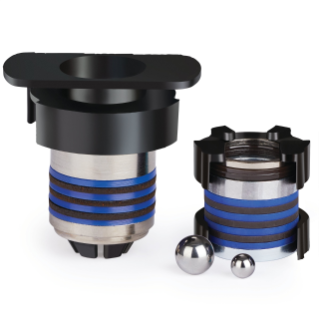

- Long Life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- SmartControl 3.0
- Consistent spray fan & pressure control
- Ideal for low overspray applications with the lowest dead band at any pressure
- Precision Advantage Drive
- The longest lasting drive
- Improved joist conditions with extremely quiet operation
- Lifetime Warranty
- ProConnect 2 Pump Replacement System
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- Flat Proof Tires
- Never have a flat again
- Tires can’t be punctured by nails, screws, or any sharp debris
- LED Display
- Easy-to-read display provides quick reference to show:
- Pressure read-out
- Job/lifetime/gallon counter
- Self-diagnostics
- Easy-to-read display provides quick reference to show:
- Honda® GX Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Crushproof Inlet Strainer
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- Additional Features:
- Rugged, Durable Cart Design
- Heavy-Duty Prime Valve
- Easy Out Pump Filter
- WatchDog Pump Protection System
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Plaster, Anti-Corrosive Paints, Fire-Retardant Paint, Intumescent |
|---|---|
| Compatible Replacement Pump | 17H837 |
| Convertible | Non-Convertible |
| Engine Size (HP) | 6.5 |
| Engine Size (kW) | 4.85 |
| Features | Endurance Vortex MaxLife Extreme Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, ProConnect 2, Flat Proof Tires, LED Display, Honda Engine, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, Easy Out Filter, WatchDog |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Hose Inlet Diameter (in) | 3/8 |
| Hose Reel Type | Hose Rack |
| Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose |
| Inlet Paint Strainer | 8 Mesh Stainless Steel Screen |
| Maximum Flow Rate (gpm) | 2.2 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (ft) | 200 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.048 |
| Maximum Tip Size 1 Gun (in) | 0.048 |
| Maximum Tip Size 2 Guns (in) | 0.035 |
| Maximum Tip Size 3 Guns (in) | 0.027 |
| Maximum Tip Size 4 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GMAX II HD |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 40.5 |
| Overall Length (in) | 38.1 |
| Overall Width (in) | 24.4 |
| Power Rating (HP) | 6.5 |
| Power Rating (W) | 4847 |
| Power Rating (kW) | 4.85 |
| Power Source | Gas |
| Pressure Control Type | SmartControl 3.0 |
| Product Series | IronMan |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife Extreme |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Series | 7900 |
| Spray Gun Type | HD Blue Texture Gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (lb) | 175 |
| Wetted Material | Acetal, Aluminium, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Compatible Material | Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Plaster, Anti-Corrosive Paints, Fire-Retardant Paint, Intumescent |
| Compatible Replacement Pump | 17H837 |
| Convertible | Non-Convertible |
| Engine Size (kW) | 4.85 |
| Features | Endurance Vortex MaxLife Extreme Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, ProConnect 2, Flat Proof Tires, LED Display, Honda Engine, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, Easy Out Filter, WatchDog |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Size (mm) | 33.34 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | NPSM |
| Frame Configuration | Hi-Boy |
| Hose Inlet Diameter (cm) | 0.9525 |
| Hose Inlet Diameter (in) | 3/8 |
| Hose Inlet Diameter (mm) | 9.525 |
| Hose Reel Type | Hose Rack |
| Includes | Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose |
| Inlet Paint Strainer | 8 Mesh Stainless Steel Screen |
| Maximum Flow Rate (l/min) | 8.33 |
| Maximum Fluid Working Pressure (psi) | 3300 |
| Maximum Hose Length (m) | 60 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (in) | 0.048 |
| Maximum Tip Size 1 Gun (in) | 0.048 |
| Maximum Tip Size 2 Guns (in) | 0.035 |
| Maximum Tip Size 3 Guns (in) | 0.027 |
| Maximum Tip Size 4 Guns (in) | 0.023 |
| Maximum Working Pressure (MPa) | 22.8 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 22700 |
| Maximum Working Pressure (kg/cm²) | 22.7 |
| Maximum Working Pressure (psi) | 3300 |
| Model | GMAX II HD |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (cm) | 98.6 |
| Overall Height (mm) | 986 |
| Overall Length (cm) | 96.8 |
| Overall Length (mm) | 1026 |
| Overall Width (cm) | 62.0 |
| Overall Width (mm) | 620 |
| Power Rating (W) | 4847 |
| Power Rating (cc) | 200 |
| Power Rating (kW) | 4.85 |
| Power Source | Gas |
| Pressure Control Type | SmartControl 3.0 |
| Product Series | IronMan |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife Extreme |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Series | 7900 |
| Spray Gun Type | HD Blue Texture Gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (kg) | 80 |
| Wetted Material | Acetal, Aluminium, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
Product Manuals
What's Included
| Part No. | Description | Qty | Unit |
|---|---|---|---|
| 241705 | Heavy-Duty Blue Texture Airless Spray Gun, 4-Finger Trigger, RAC X | 1 | ea |
| LTX427 | RAC X SwitchTip, 427 | 1 | ea |
| LTX531 | RAC X SwitchTip, 531 | 1 | ea |
| 246215 | RAC X HandTite Tip Guard | 1 | ea |
| 240797 | BlueMax II Airless Hose, 3/8 in x 50 ft | 1 | ea |
Repair Parts
| Part No. | Description |
|---|---|
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
| 287988 | HOSE, SUCTION, GMAX 3900/5900 |
| 17A095 | KIT, REPAIR, CONTROL BOARD, GMAX |
| 248215 | KIT, REPAIR, INTAKE TUBE |
| 257352 | Q KIT, REPAIR, PRIME VALVE, HD |
| 244240 | KIT, REPAIR, RETURN LINE, HI |
| 243222 | Q KIT, REPAIR, TRANSDUCER |
| 16Y760 | KIT, REPAIR, TUBE, SUCTION, 7900 |
| 16Y496 | KIT,DISPLAY, GMAX, PREMIUM |
| 117285 | PACKING, O-RING |
| 118494 | PACKING, O-RING |
| 116752 | SWITCH, ROCKER |
| 15C766 | TUBE, DIFFUSION |
| 241705 | Heavy-Duty Blue Texture Airless Spray Gun, 4-Finger Trigger, RAC X |
| 240797 | BlueMax II Airless Hose, 3/8 in x 50 ft |
